bis 15 L/Min.

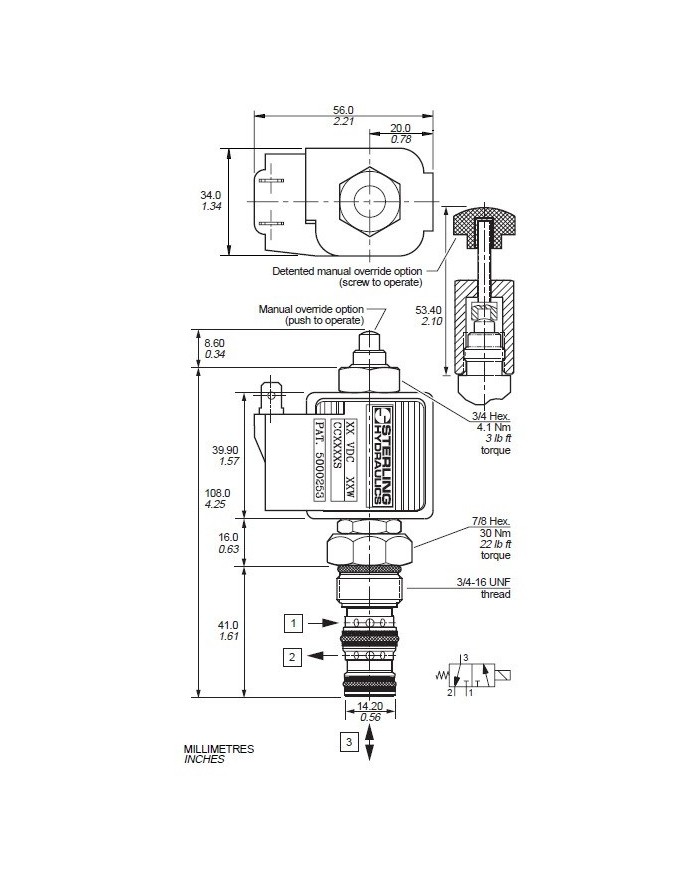

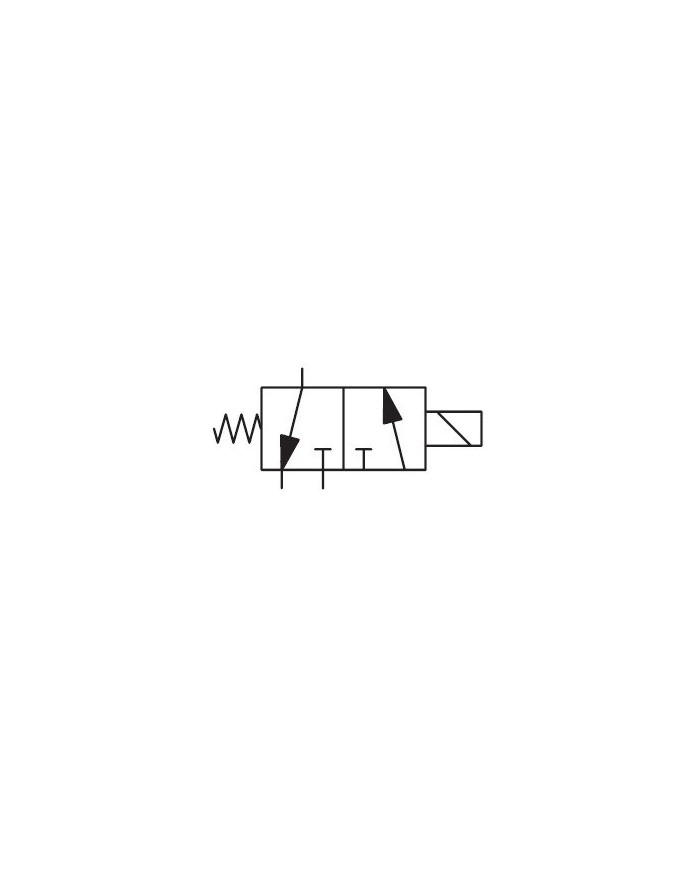

Parker - GS02 32 - Solenoid valve - spool type , 2-position 3-way - bottom cylinder port

Features

• High flow capacity.
• One piece cartridge housing ensures internal concentricity.
• Coil: Waterproof, hermetically sealed, requires no O’Rings;
  Interchangeable with 04 and 06 series poppet valves;
  Symmetrical coil can be reversed without affecting performance.

Operation

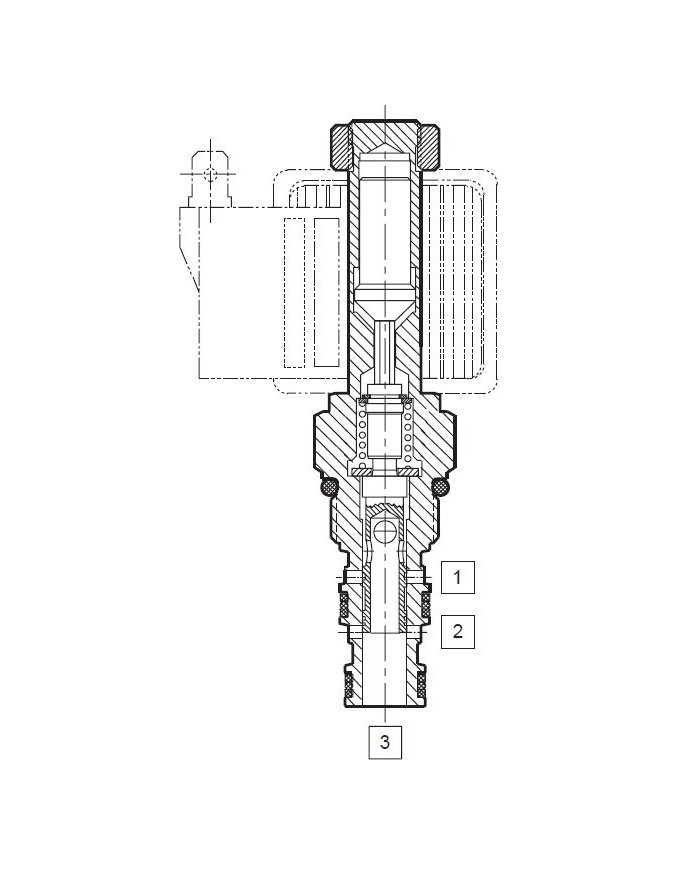

De-energized, the spool land blocks the annular cross holes in the cage at port 1, and partially blocks the annular holes at port 2. The spring and collet maintain this position. Flow is blocked at port 1 and will flow from port 3 to port 2. Energized, the armature pushes the spool against the spring force, blocking port 2 and allowing flow from port 1 through the hollow spool to port 3.


The coil is not included in delivery - die Magnetspule ist im Lieferumfang nicht enthalten.
