bis 19 L/Min.

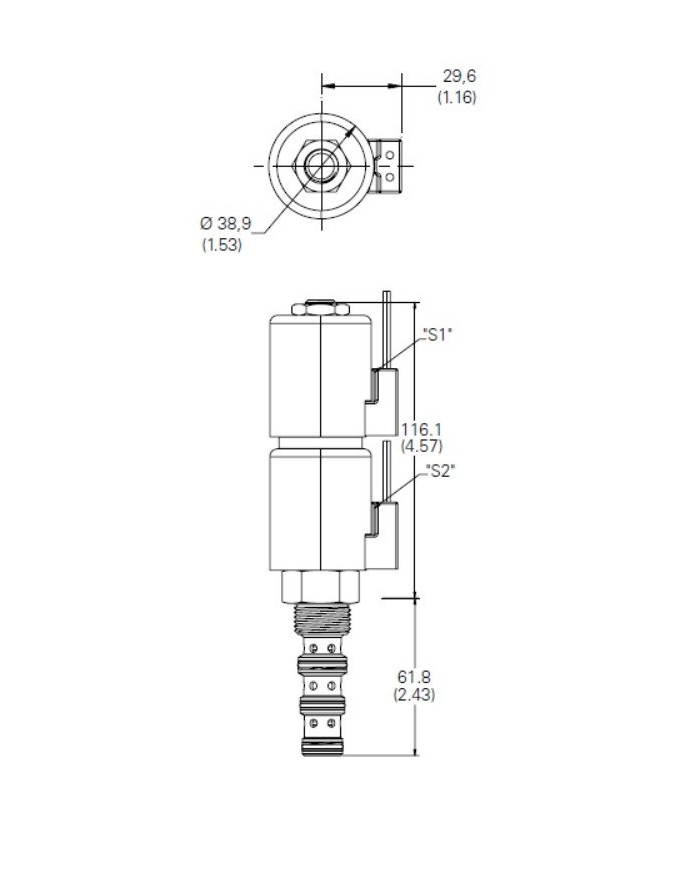

Danfoss/Eaton SV9-10-A - Solenoid Valve
4-way, 3-position spool type solenoid valve

Operation
In the de-energized position, this valve allows flow from port 3 to port 1 and blocks ports 2 and 4. When solenoid 1 (S1) is energized, flow is directed from port 3 to port 2 and from port 4 to port 1.

When solenoid 2 (S2) is energized, flow is directed from port 3 to port 4 and from port 2 to port 1.
