3000 PSI Stahl S355J2

Name: 3000 PSI Stahl S355J2
Brand: ATP Hydraulik Shop
SKU: 140

komplett mit M-Schrauben und O-Ringen

Zur Favoritenliste hinzufügen

Varianten

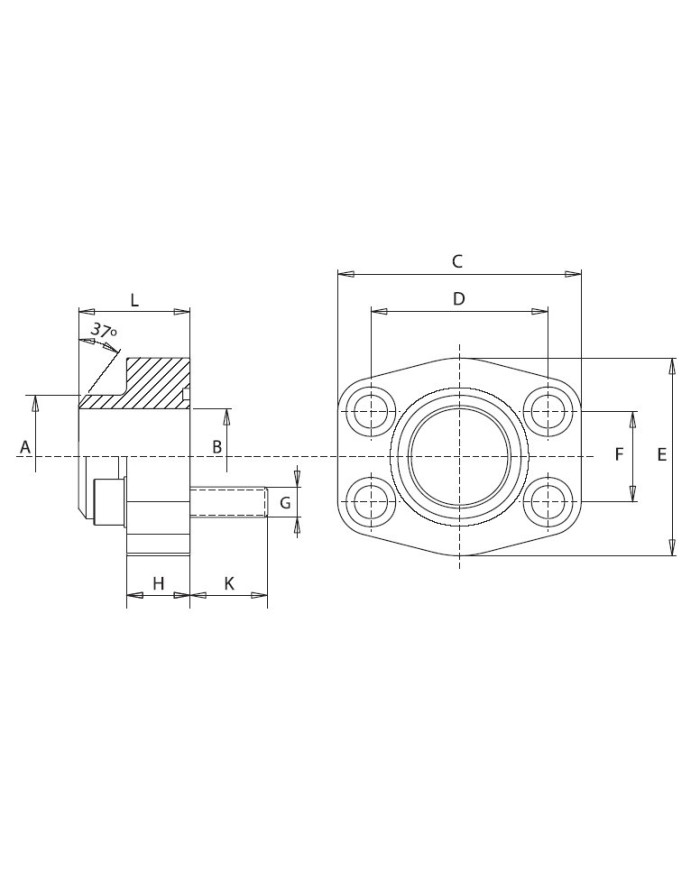

Artikel-Nr.	Variante	Model Code	max. Betriebsdruck [bar]	A ["]	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	H [mm]	K [mm]	L [mm]	O-Ring	G
070 514 205	1	C.F.S. 080-ST-M	345	1/2"	21.6	13	58	38.1	48	17.5	16	14	36	AN210	M8
070 514 207	2	C.F.S. 100-ST-M	345	3/4"	27.2	19	67	47.6	50	22.2	18	16	36	AN214	M10
070 514 210	3	C.F.S. 102-ST-M	345	1"	34.5	25	71	52.4	54	26.2	18	16	38	AN219	M10
070 514 211	4	C.F.S. 104-ST-M	275	1 1/4"	42.8	31	81	58.7	70	30.2	21	18	41	AN222	M10
070 514 215	5	C.F.S. 106-ST-M	200	1 1/2"	48.6	38	95	69.8	78	35.7	25	18	44	AN225	M12
070 514 220	6	C.F.S. 108-ST-M	200	2"	61	50	104	77.8	90	42.9	25	18	45	AN228	M12
070 514 225	7	C.F.S. 110-ST-M	170	2 1/2"	76.6	63	116	88.9	102	50.8	25	18	50	AN232	M12
070 514 230	8	C.F.S. 112-ST-M	135	3"	89	73	136	106.4	125	61.9	27	25	50	AN237	M16
070 514 235	9	C.F.S. 114-ST-M	35	3 1/2"	103	89	154	120.7	138	69.8	27	25	50	AN241	M16
070 514 240	10	C.F.S. 116-ST-M	35	4"	115	99	164	130.2	148	77.8	27	25	50	AN245	M16

Model Code	C.F.S. 102-ST-M
Model Code	C.F.S. 116-ST-M
Model Code	C.F.S. 104-ST-M
Model Code	C.F.S. 106-ST-M
Model Code	C.F.S. 108-ST-M
Model Code	C.F.S. 110-ST-M
Model Code	C.F.S. 080-ST-M
Model Code	C.F.S. 112-ST-M
Model Code	C.F.S. 100-ST-M
Model Code	C.F.S. 114-ST-M
max. Betriebsdruck [bar]	170
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	135
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	275
max. Betriebsdruck [bar]	200
max. Betriebsdruck [bar]	200
A ["]	3 1/2"
A ["]	1"
A ["]	4"
A ["]	1 1/4"
A ["]	1 1/2"
A ["]	2"
A ["]	2 1/2"
A ["]	1/2"
A ["]	3"
A ["]	3/4"
A [mm]	61
A [mm]	76.6
A [mm]	21.6
A [mm]	89
A [mm]	27.2
A [mm]	103
A [mm]	34.5
A [mm]	115
A [mm]	42.8
A [mm]	48.6
B [mm]	19
B [mm]	89
B [mm]	25
B [mm]	99
B [mm]	31
B [mm]	38
B [mm]	50
B [mm]	63
B [mm]	13
B [mm]	73
C [mm]	95
C [mm]	104
C [mm]	116
C [mm]	58
C [mm]	136
C [mm]	67
C [mm]	154
C [mm]	71
C [mm]	164
C [mm]	81
D [mm]	106.4
D [mm]	47.6
D [mm]	120.7
D [mm]	52.4
D [mm]	130.2
D [mm]	58.7
D [mm]	69.8
D [mm]	77.8
D [mm]	88.9
D [mm]	38.1
E [mm]	70
E [mm]	78
E [mm]	90
E [mm]	102
E [mm]	48
E [mm]	125
E [mm]	50
E [mm]	138
E [mm]	54
E [mm]	148
F [mm]	50.8
F [mm]	17.5
F [mm]	61.9
F [mm]	22.2
F [mm]	69.8
F [mm]	26.2
F [mm]	77.8
F [mm]	30.2
F [mm]	35.7
F [mm]	42.9
H [mm]	21
H [mm]	25
H [mm]	25
H [mm]	25
H [mm]	27
H [mm]	16
H [mm]	18
H [mm]	27
H [mm]	18
H [mm]	27
K [mm]	18
K [mm]	14
K [mm]	25
K [mm]	16
K [mm]	25
K [mm]	16
K [mm]	25
K [mm]	18
K [mm]	18
K [mm]	18
L [mm]	38
L [mm]	50
L [mm]	41
L [mm]	44
L [mm]	45
L [mm]	50
L [mm]	36
L [mm]	50
L [mm]	36
L [mm]	50
O-Ring	AN228
O-Ring	AN232
O-Ring	AN210
O-Ring	AN237
O-Ring	AN214
O-Ring	AN241
O-Ring	AN219
O-Ring	AN245
O-Ring	AN222
O-Ring	AN225
G	M12
G	M12
G	M12
G	M8
G	M16
G	M10
G	M16
G	M10
G	M16
G	M10

Download:

Katalog ATP SAE Flansche - Stahl

SAE Flansche - Stahl

Download (660.4KB)

3000 PSI Stahl S355J2

Varianten

Download:

Katalog ATP SAE Flansche - Stahl
