3000 PSI rostfreier Stahl 1.4404

Name: 3000 PSI rostfreier Stahl 1.4404
Brand: ATP Hydraulik Shop
SKU: 142

komplett mit M-Schrauben und O-Ringen

Zur Favoritenliste hinzufügen

Varianten

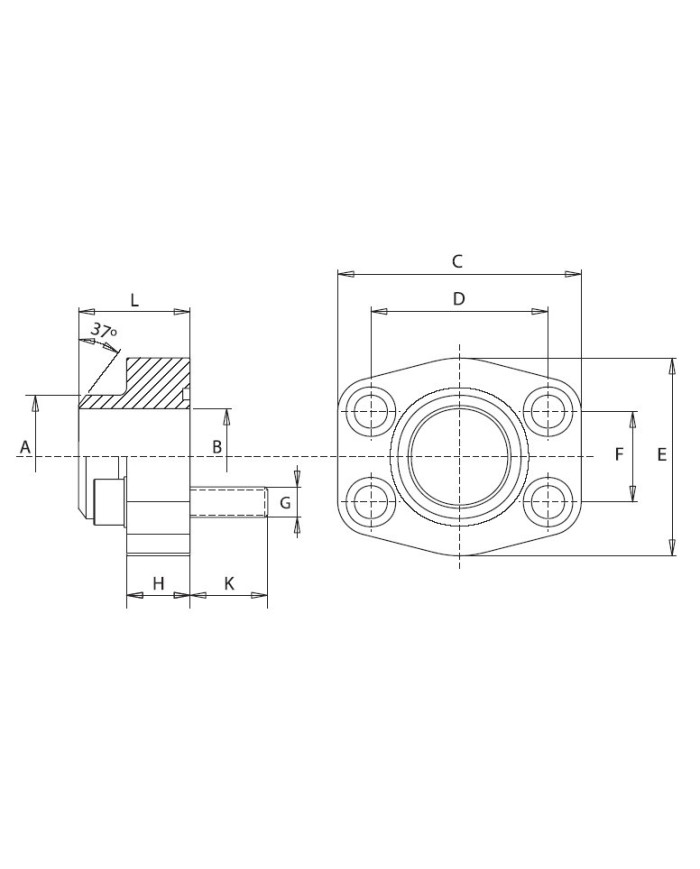

Artikel-Nr.	Variante	Model Code	max. Betriebsdruck [bar]	A ["]	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	H [mm]	K [mm]	L [mm]	O-Ring	G
070 514 206	1	RF-C.F.S. 080-ST-M	348	1/2"	21.6	13	57	38.1	47	17.5	16	14	36	AN210	M8
070 514 208	2	RF-C.F.S. 100-ST-M	348	3/4"	27.2	19	66	47.6	49	22.3	18	16	36	AN214	M10
070 514 209	3	RF-C.F.S. 102-ST-M	348	1"	34.5	25	71	52.4	53	26.2	18	16	38	AN219	M10
070 514 212	4	RF-C.F.S. 104-ST-M	278	1 1/4"	42.8	31	80	58.7	69	30.2	21	18	41	AN222	M10
070 514 216	5	RF-C.F.S. 106-ST-M	210	1 1/2"	48.6	38	94	69.9	77	35.7	25	18	44	AN225	M12
070 514 221	6	RF-C.F.S. 108-ST-M	210	2"	61	50	103	77.8	89	42.9	25	18	45	AN228	M12
070 514 226	7	RF-C.F.S. 110-ST-M	175	2 1/2"	76.6	63	115	88.9	101	50.8	25	18	50	AN232	M12
070 514 231	8	RF-C.F.S. 112-ST-M	138	3"	89	73	135	106.4	124	61.9	27	25	50	AN237	M16
070 514 236	9	RF-C.F.S. 114-ST-M	35	3 1/2"	103	89	153	120.7	137	69.9	27	25	50	AN241	M16
070 514 241	10	RF-C.F.S. 116-ST-M	35	4"	115	99	163	130.2	147	77.8	27	25	50	AN245	M16

Model Code	RF-C.F.S. 110-ST-M
Model Code	RF-C.F.S. 080-ST-M
Model Code	RF-C.F.S. 112-ST-M
Model Code	RF-C.F.S. 100-ST-M
Model Code	RF-C.F.S. 114-ST-M
Model Code	RF-C.F.S. 102-ST-M
Model Code	RF-C.F.S. 116-ST-M
Model Code	RF-C.F.S. 104-ST-M
Model Code	RF-C.F.S. 106-ST-M
Model Code	RF-C.F.S. 108-ST-M
max. Betriebsdruck [bar]	278
max. Betriebsdruck [bar]	210
max. Betriebsdruck [bar]	210
max. Betriebsdruck [bar]	175
max. Betriebsdruck [bar]	348
max. Betriebsdruck [bar]	138
max. Betriebsdruck [bar]	348
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	348
max. Betriebsdruck [bar]	35
A ["]	1 1/2"
A ["]	2"
A ["]	2 1/2"
A ["]	1/2"
A ["]	3"
A ["]	3/4"
A ["]	3 1/2"
A ["]	1"
A ["]	4"
A ["]	1 1/4"
A [mm]	115
A [mm]	42.8
A [mm]	48.6
A [mm]	61
A [mm]	76.6
A [mm]	21.6
A [mm]	89
A [mm]	27.2
A [mm]	103
A [mm]	34.5
B [mm]	50
B [mm]	63
B [mm]	13
B [mm]	73
B [mm]	19
B [mm]	89
B [mm]	25
B [mm]	99
B [mm]	31
B [mm]	38
C [mm]	153
C [mm]	71
C [mm]	163
C [mm]	80
C [mm]	94
C [mm]	103
C [mm]	115
C [mm]	57
C [mm]	135
C [mm]	66
D [mm]	77.8
D [mm]	88.9
D [mm]	38.1
D [mm]	106.4
D [mm]	47.6
D [mm]	120.7
D [mm]	52.4
D [mm]	130.2
D [mm]	58.7
D [mm]	69.9
E [mm]	124
E [mm]	49
E [mm]	137
E [mm]	53
E [mm]	147
E [mm]	69
E [mm]	77
E [mm]	89
E [mm]	101
E [mm]	47
F [mm]	35.7
F [mm]	42.9
F [mm]	50.8
F [mm]	17.5
F [mm]	61.9
F [mm]	22.3
F [mm]	69.9
F [mm]	26.2
F [mm]	77.8
F [mm]	30.2
H [mm]	16
H [mm]	25
H [mm]	27
H [mm]	18
H [mm]	27
H [mm]	18
H [mm]	27
H [mm]	21
H [mm]	25
H [mm]	25
K [mm]	25
K [mm]	16
K [mm]	25
K [mm]	18
K [mm]	18
K [mm]	18
K [mm]	18
K [mm]	14
K [mm]	25
K [mm]	16
L [mm]	45
L [mm]	50
L [mm]	36
L [mm]	50
L [mm]	36
L [mm]	50
L [mm]	38
L [mm]	50
L [mm]	41
L [mm]	44
O-Ring	AN214
O-Ring	AN241
O-Ring	AN219
O-Ring	AN245
O-Ring	AN222
O-Ring	AN225
O-Ring	AN228
O-Ring	AN232
O-Ring	AN210
O-Ring	AN237
G	M8
G	M16
G	M10
G	M16
G	M10
G	M16
G	M10
G	M12
G	M12
G	M12

Download:

Katalog SAE Flansche rostfrei

SAE Flansche - Stahl rostfrei

Download (720.74KB)
