bis 1.7 L/Min.

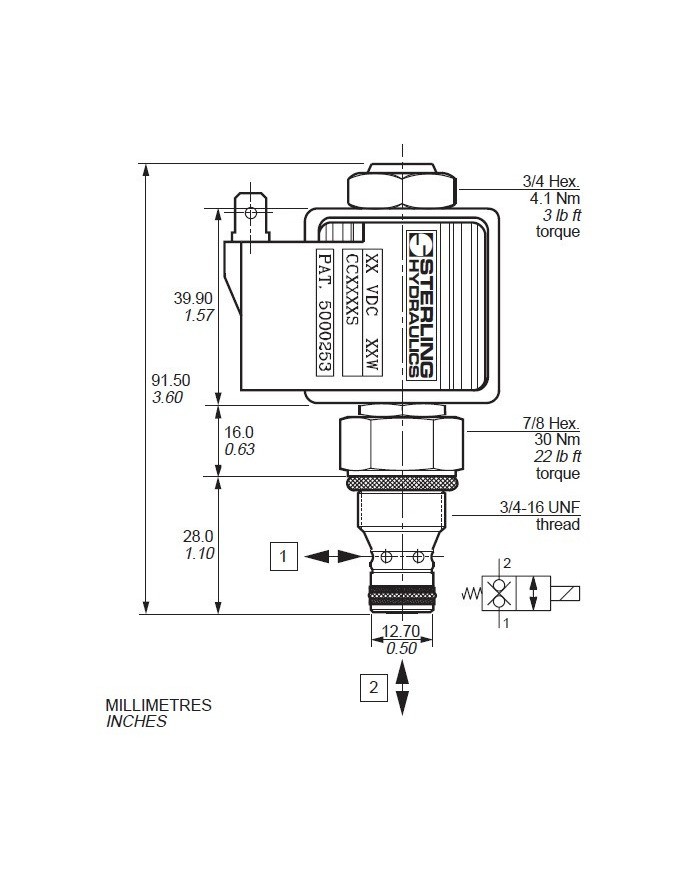

Parker - GS02 73 - Solenoid valve - poppet type, 2-position 2-way, normally closed, bi-directional acting

Features

• Fast response.
• One piece cartridge housing ensures internal concentricity.
• Coil: Waterproof, hermetically sealed, requires no o’rings; interchangeable with 04 and 06 series poppet valves; symmetrical coil can be reversed without affecting performance.

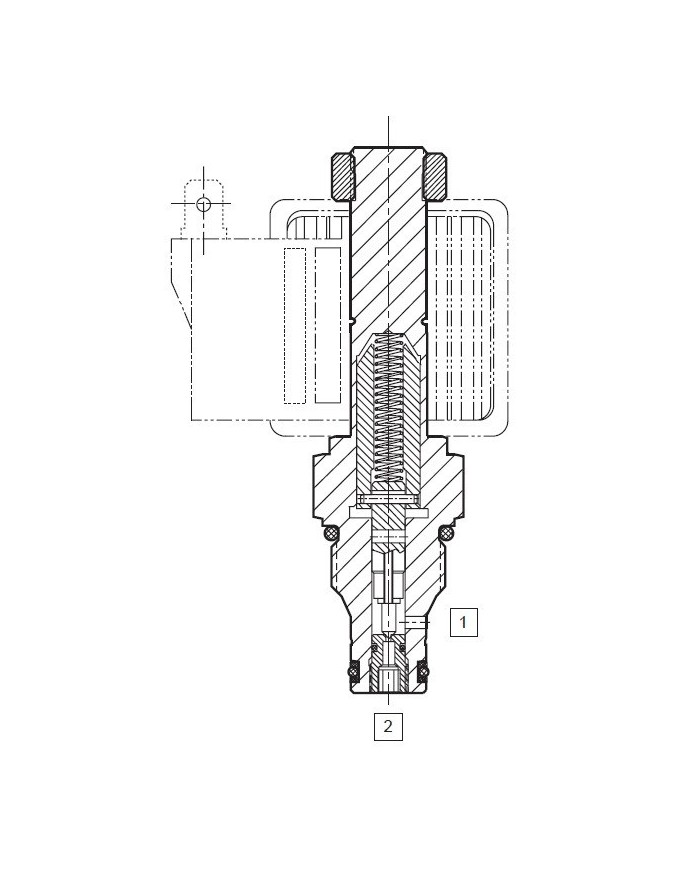

OPERATION
De-energized the spring holds the pilot against its seat. Pressure on the side port holds the pilot firmly closed. Pressure above 3000 psi on the nose will lift the pilot causing relief flow. Energized the pilot is pulled by the armature lifting it off its seat allowing flow in either direction.

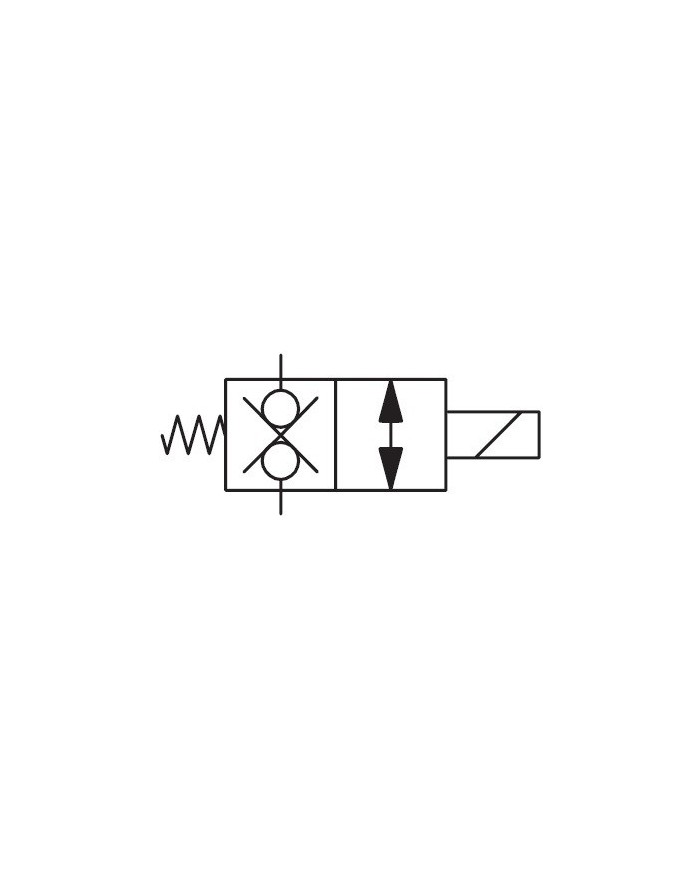

Closed in both directions when solenoid is de-energized.

The coil is not included in delivery - die Magnetspule ist im Lieferumfang nicht enthalten.
