Name: Boden
Brand: ATP Hydraulik Shop
SKU: 1253

Zum Vergrössern anklicken

Nächstes Produkt

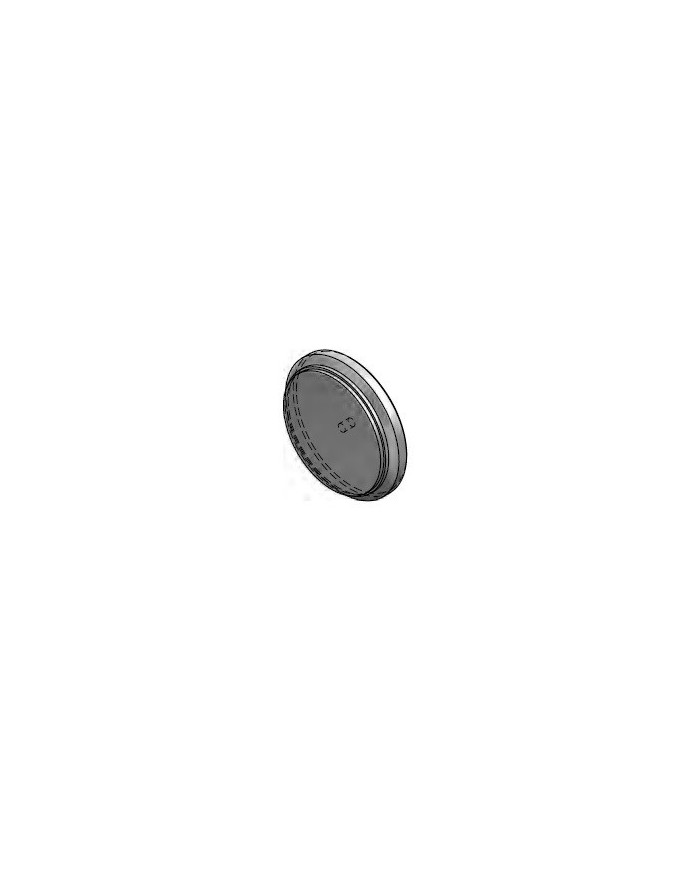

Boden

Dm 025/035 - Dm 160/180
Series CFC

End plugs with centering

Material: Steel S355J0 (Fe510C) - S355JR (A105)

Zur Favoritenliste hinzufügen

Varianten

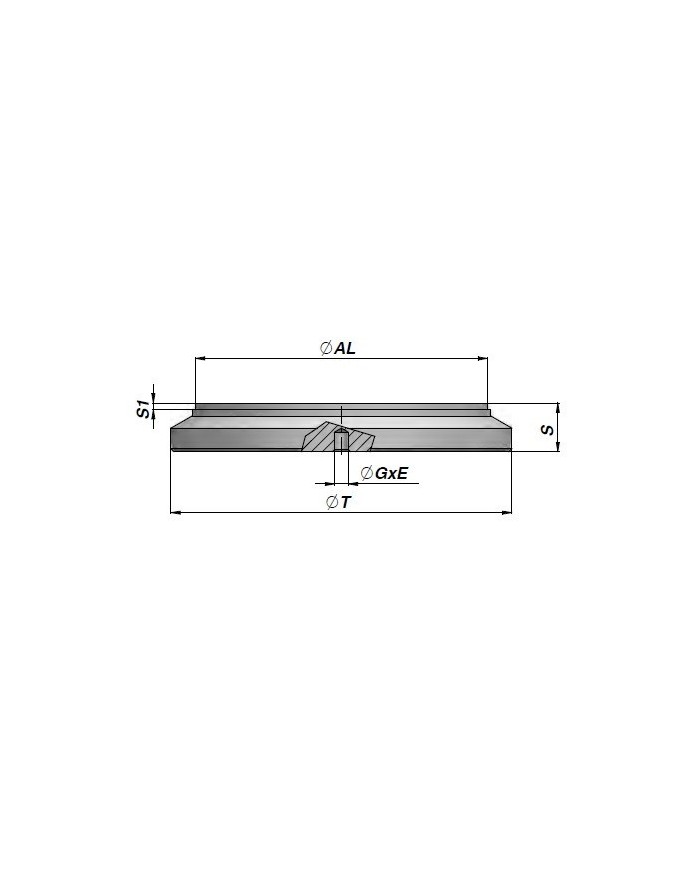

Artikel-Nr.	Variante	Model Code	S [mm]	T [mm]	Gewicht [kg]	S1 [mm]	ØAL	ØGxE [mm]
816 100 701	1	CFC0025035	7	35	0.04	2	25	3.25x3
816 120 701	2	CFC0030040	8	40	0.06	2	30	4.25x5
816 128 701	3	CFC0032042	8	42	0.06	2	32	4.25x5
816 140 701	4	CFC0035045	10	45	0.10	2	35	4.25x5
816 160 701	5	CFC0040050	10	50	0.13	2	40	4.25x5
816 180 701	6	CFC0045055	10	55	0.16	2	45	4.25x5
816 200 701	7	CFC0050060	10	60	0.19	2	50	4.25x5
816 220 701	8	CFC0055065	12	65	0.28	2	55	4.25x6
816 240 701	9	CFC0060070	12	70	0.33	2	60	4.25x6
816 252 701	10	CFC0063073	12	73	0.40	2	63	4.25x6
816 260 702	11	CFC0065075	12	75	0.38	2	65	4.25x6
816 260 701	12	CFC0065080	12	80	0.40	2	65	4.25x6
816 280 701	13	CFC0070080	12	80	0.43	2	70	4.25x6
816 280 702	14	CFC0070085	12	85	0.45	2	70	4.25x6
816 300 701	15	CFC0075090	12	90	0.53	2	75	4.25x6
816 320 701	16	CFC0080090	12	90	0.55	2	80	4.25x6
816 320 702	17	CFC0080095	12	95	0.58	2	80	4.25x6
816 340 701	18	CFC0085100	15	100	0.77	2	85	4.25x6
816 360 701	19	CFC0090105	15	105	0.90	2	90	4.25x6
816 400 701	20	CFC0100115	15	115	1.05	2	100	4.25x6
816 440 701	21	CFC0110125	15	125	1.34	2	110	6.25x8
816 440 702	22	CFC0110130	15	130	1.40	2	110	6.25x8
816 480 701	23	CFC0120140	18	140	2.00	2	120	6.25x8
816 500 701	24	CFC0125145	18	145	2.11	2	125	6.25x8
816 560 701	25	CFC0140160	18	160	2.62	2	140	6.25x8
816 600 701	26	CFC0150170	20	170	3.32	2	150	6.25x8
816 640 701	27	CFC0160180	20	180	3.74	2	160	6.25x8

Model Code	CFC0120140
Model Code	CFC0035045
Model Code	CFC0080095
Model Code	CFC0065075
Model Code	CFC0125145
Model Code	CFC0040050
Model Code	CFC0085100
Model Code	CFC0065080
Model Code	CFC0140160
Model Code	CFC0045055
Model Code	CFC0090105
Model Code	CFC0070080
Model Code	CFC0150170
Model Code	CFC0050060
Model Code	CFC0100115
Model Code	CFC0025035
Model Code	CFC0070085
Model Code	CFC0160180
Model Code	CFC0055065
Model Code	CFC0110125
Model Code	CFC0030040
Model Code	CFC0075090
Model Code	CFC0060070
Model Code	CFC0110130
Model Code	CFC0032042
Model Code	CFC0080090
Model Code	CFC0063073
S [mm]	10
S [mm]	15
S [mm]	12
S [mm]	18
S [mm]	10
S [mm]	15
S [mm]	12
S [mm]	20
S [mm]	10
S [mm]	15
S [mm]	7
S [mm]	12
S [mm]	20
S [mm]	12
S [mm]	15
S [mm]	8
S [mm]	12
S [mm]	12
S [mm]	15
S [mm]	8
S [mm]	12
S [mm]	12
S [mm]	18
S [mm]	10
S [mm]	12
S [mm]	12
S [mm]	18
T [mm]	80
T [mm]	170
T [mm]	60
T [mm]	115
T [mm]	35
T [mm]	85
T [mm]	180
T [mm]	65
T [mm]	125
T [mm]	40
T [mm]	90
T [mm]	70
T [mm]	130
T [mm]	42
T [mm]	90
T [mm]	73
T [mm]	140
T [mm]	45
T [mm]	95
T [mm]	75
T [mm]	145
T [mm]	50
T [mm]	100
T [mm]	80
T [mm]	160
T [mm]	55
T [mm]	105
Gewicht [kg]	0.77
Gewicht [kg]	0.40
Gewicht [kg]	2.62
Gewicht [kg]	0.16
Gewicht [kg]	0.90
Gewicht [kg]	0.43
Gewicht [kg]	3.32
Gewicht [kg]	0.19
Gewicht [kg]	1.05
Gewicht [kg]	0.04
Gewicht [kg]	0.45
Gewicht [kg]	3.74
Gewicht [kg]	0.28
Gewicht [kg]	1.34
Gewicht [kg]	0.06
Gewicht [kg]	0.53
Gewicht [kg]	0.33
Gewicht [kg]	1.40
Gewicht [kg]	0.06
Gewicht [kg]	0.55
Gewicht [kg]	0.40
Gewicht [kg]	2.00
Gewicht [kg]	0.10
Gewicht [kg]	0.58
Gewicht [kg]	0.38
Gewicht [kg]	2.11
Gewicht [kg]	0.13
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
S1 [mm]	2
ØAL	63
ØAL	120
ØAL	35
ØAL	80
ØAL	65
ØAL	125
ØAL	40
ØAL	85
ØAL	65
ØAL	140
ØAL	45
ØAL	90
ØAL	70
ØAL	150
ØAL	50
ØAL	100
ØAL	25
ØAL	70
ØAL	160
ØAL	55
ØAL	110
ØAL	30
ØAL	75
ØAL	60
ØAL	110
ØAL	32
ØAL	80
ØGxE [mm]	4.25x6
ØGxE [mm]	6.25x8
ØGxE [mm]	4.25x6
ØGxE [mm]	6.25x8
ØGxE [mm]	4.25x5
ØGxE [mm]	4.25x6
ØGxE [mm]	4.25x6
ØGxE [mm]	6.25x8
ØGxE [mm]	4.25x5
ØGxE [mm]	4.25x6
ØGxE [mm]	4.25x6
ØGxE [mm]	6.25x8
ØGxE [mm]	4.25x5
ØGxE [mm]	4.25x6
ØGxE [mm]	4.25x6
ØGxE [mm]	6.25x8
ØGxE [mm]	4.25x5
ØGxE [mm]	4.25x6
ØGxE [mm]	4.25x6
ØGxE [mm]	6.25x8
ØGxE [mm]	4.25x5
ØGxE [mm]	4.25x6
ØGxE [mm]	4.25x6
ØGxE [mm]	6.25x8
ØGxE [mm]	4.25x5
ØGxE [mm]	4.25x6
ØGxE [mm]	3.25x3

Download:

Datenblatt Boden CFC

Datenblatt Zylinder Boden Serie CFC

Download (417.11KB)
