DBV bis 150 L/Min.
Eaton Model 1LR100

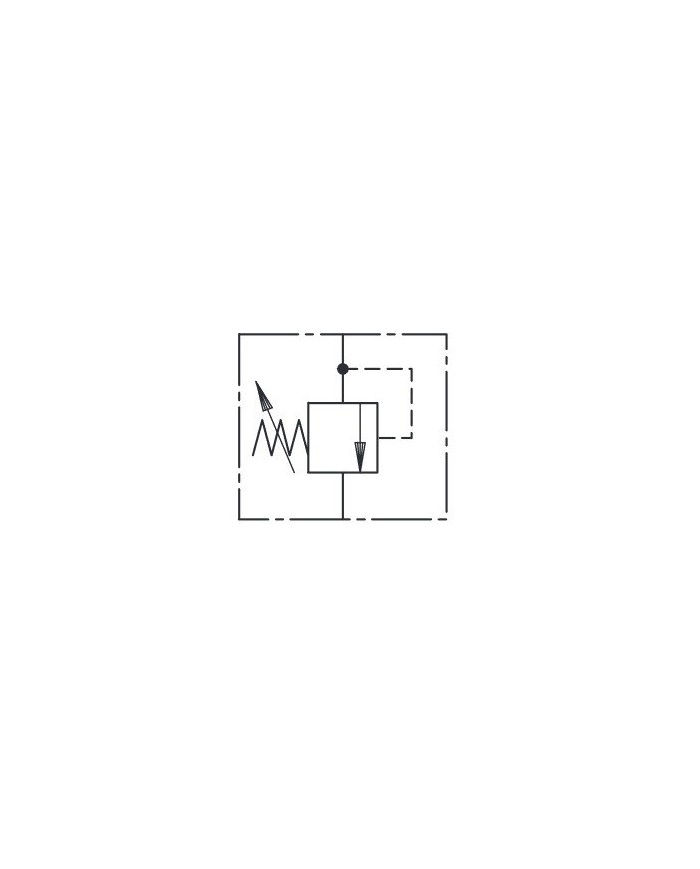

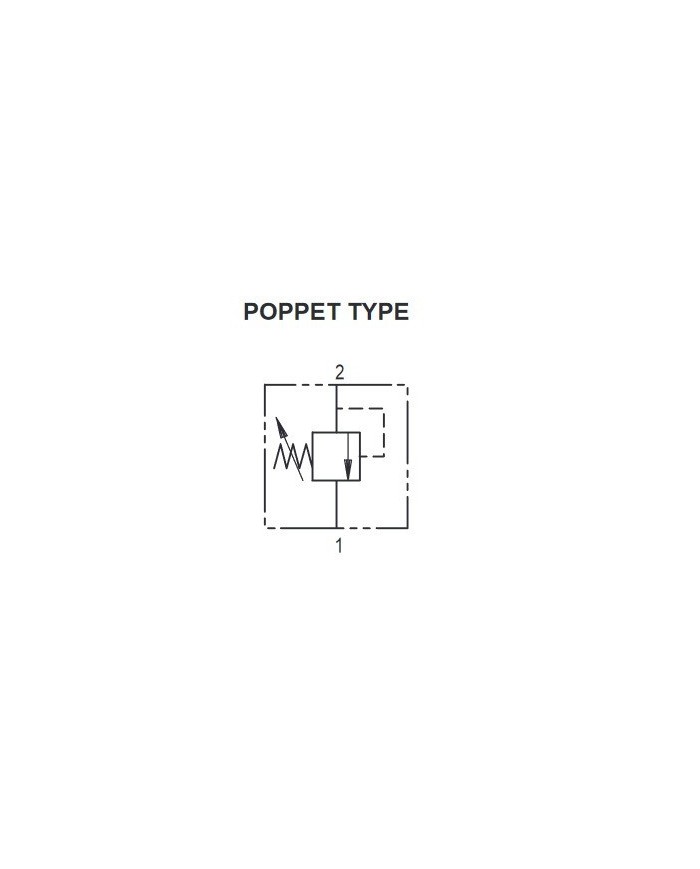

Eaton Integrated 1LR100 - Relief valve - Direct acting, Differential, poppet style
Description
Ideal for intermittent duty as protection against overload or surge conditions for all types of actuators. Very fast acting and extremely dirt tolerant.
Operation

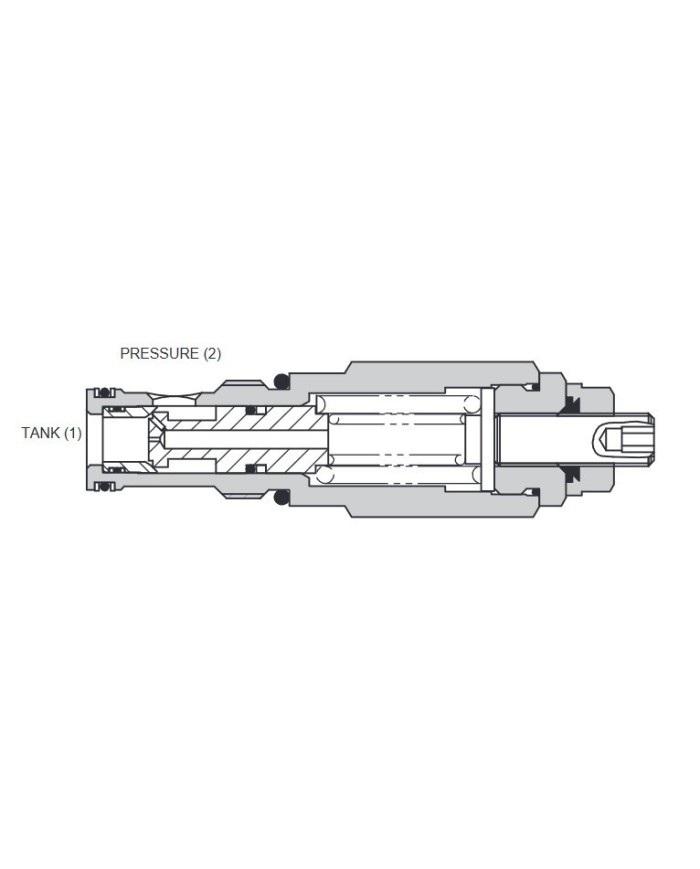

Pressure acts over the differential area between the seat and seal on the poppet. When the pressure exceeds the setting, the valve opens, allowing relief flow to tank, washing contaminant away from the seat.
Features

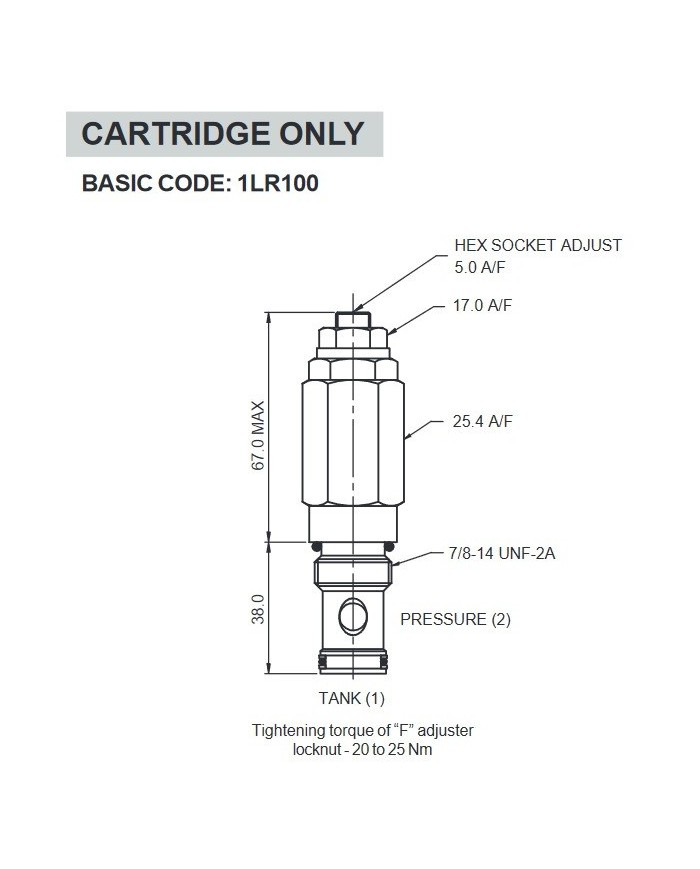

Dirt tolerant, robust and consistent with good pressure rise to increase in flow characteristics for a direct acting valve. Cartridge constuction provides for maximum flexibility in mounting.
Adjustment Means
F = Screw Adjustment
P = Leackproof Screw Adjustment
Preise sind nur für registrierte Nutzer (B2B-Kunden) sichtbar.
Einloggen
kostenlos registrieren
Varianten
| Artikel-Nr. | Variante | Model Code | max. Betriebsdruck [bar] | max. Durchfluss [L/Min] | Einschraubbohrung | Einstellbereich [bar] | Dichtung | Standard-Einstellung [bar] |
|---|---|---|---|---|---|---|---|---|
| 540 125 031 | 1 | 1LR100-F-17-S | 350 | 150 | A878 | 35-175 | Nitrile | 105 |
| 540 125 051 | 2 | 1LR100-P-40-S | 350 | 150 | A885 | 50-400 | Nitrile | 280 |
