DBV bis 50 L/Min

Danfoss/Eaton Model 1CLLR50
Cavity C-10-2

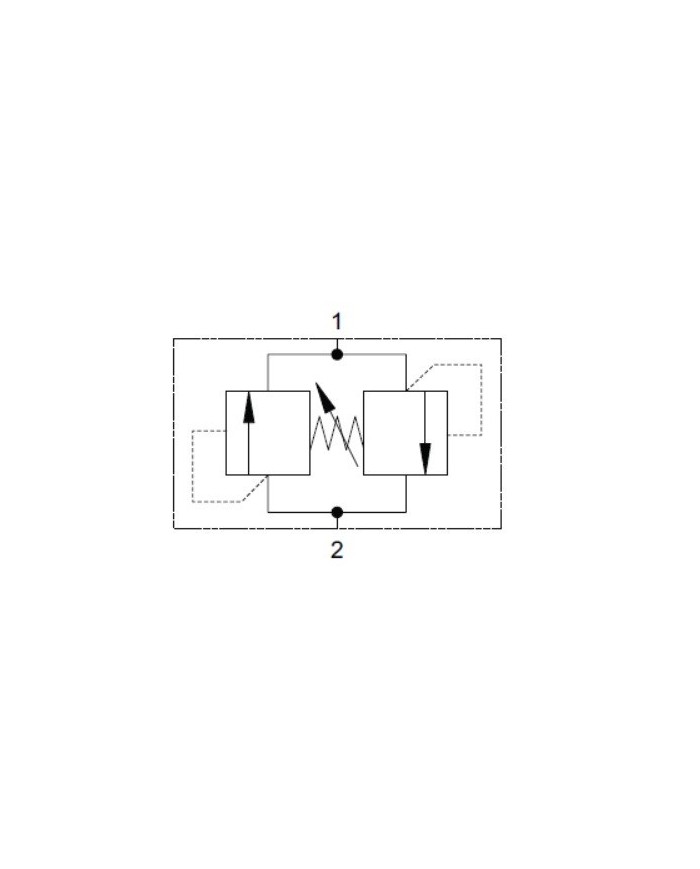

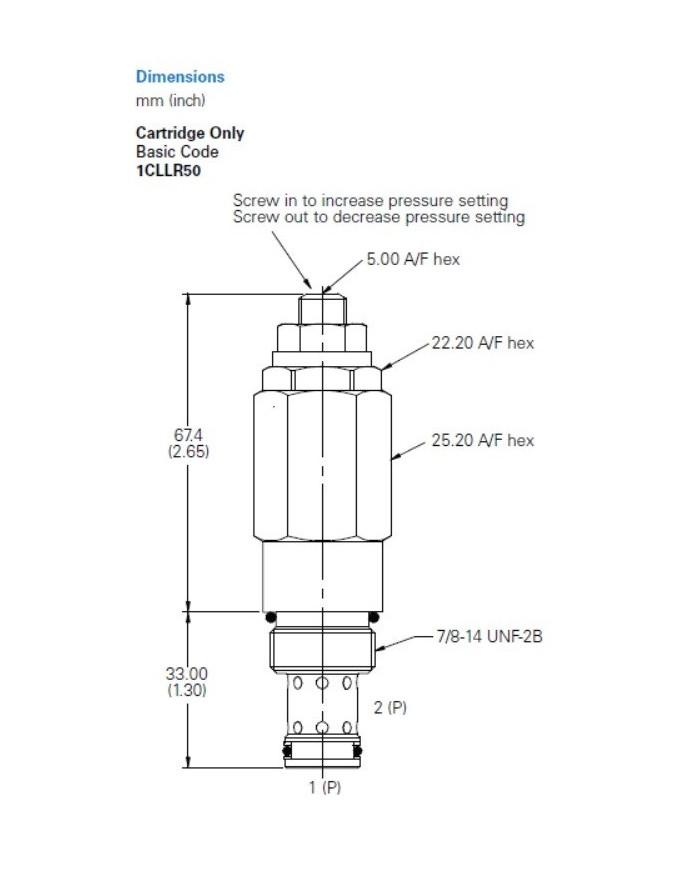

Danfoss/Eaton 1CLLR50 - Dual Relief Valve, Poppet, direct acting, differential area

Operation
Pressure acts over one of two differential areas forcing the poppet back allowing relief flow to the other port.

This being a single cartridge is ideal for mounting on to a motor in a special housing.

Artikel-Nr.	Variante	Model Code	max. Betriebsdruck [bar]	max. Durchfluss [L/Min]	Anschluss	Einschraubbohrung	Dichtung
307 020 010	1	1CLLR50-F-25-S	250	50	cartridge only	C-10-2	Nitrile

Eaton 1CLLR50 - Dual Relief Valve
