3000 PSI Stahl S355J2

Name: 3000 PSI Stahl S355J2
Brand: ATP Hydraulik Shop
SKU: 313

komplett mit M-Schrauben und O-Ringen.

Zur Favoritenliste hinzufügen

Varianten

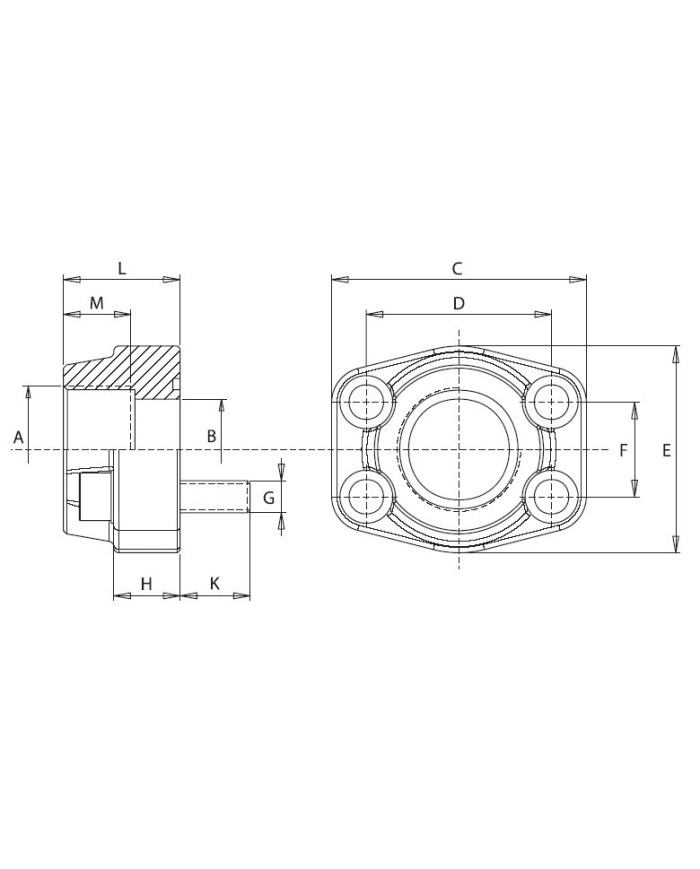

Artikel-Nr.	Variante	Model Code	max. Betriebsdruck [bar]	A ["]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	H [mm]	K [mm]	L [mm]	M [mm]	O-Ring	G
070 511 205	1	C.F.S. 080-GAS-M	345	1/2"	13	58	38	48	17.5	16	14	36	15	AN210	M8
070 511 207	2	C.F.S. 100-GAS-M	345	3/4"	19	67	47.6	50	22.2	18	16	36	18	AN214	M10
070 511 210	3	C.F.S. 102-GAS-M	345	1"	25	72	52.4	54	26.2	18	16	38	20	AN219	M10
070 511 211	4	C.F.S. 104-GAS-M	275	1 1/4"	31	80	58.7	70	30.2	21	18	41	22	AN222	M10
070 511 215	5	C.F.S. 106-GAS-M	200	1 1/2"	38	94	70	78	35.7	25	18	44	24	AN225	M12
070 511 220	6	C.F.S. 108-GAS-M	200	2"	50	104	77.8	90	42.9	25	18	45	26	AN228	M12
070 511 225	7	C.F.S. 110-GAS-M	170	2 1/2"	63	116	89	102	50.8	25	18	50	30	AN232	M12
070 511 230	8	C.F.S. 112-GAS-M	135	3"	73	136	106.4	125	62	27	25	50	30	AN237	M16
070 511 235	9	C.F.S. 114-GAS-M	35	3 1/2"	89	153	120.7	137	70	27	25	50	30	AN241	M16
070 511 240	10	C.F.S. 116-GAS-M	35	4"	99	162	130	147	77.8	27	25	48	30	AN245	M16

Model Code	C.F.S. 112-GAS-M
Model Code	C.F.S. 100-GAS-M
Model Code	C.F.S. 114-GAS-M
Model Code	C.F.S. 102-GAS-M
Model Code	C.F.S. 116-GAS-M
Model Code	C.F.S. 104-GAS-M
Model Code	C.F.S. 106-GAS-M
Model Code	C.F.S. 108-GAS-M
Model Code	C.F.S. 110-GAS-M
Model Code	C.F.S. 080-GAS-M
max. Betriebsdruck [bar]	200
max. Betriebsdruck [bar]	170
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	135
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	275
max. Betriebsdruck [bar]	200
A ["]	3/4"
A ["]	3 1/2"
A ["]	1"
A ["]	4"
A ["]	1 1/4"
A ["]	1 1/2"
A ["]	2"
A ["]	2 1/2"
A ["]	1/2"
A ["]	3"
B [mm]	38
B [mm]	50
B [mm]	63
B [mm]	13
B [mm]	73
B [mm]	19
B [mm]	89
B [mm]	25
B [mm]	99
B [mm]	31
C [mm]	58
C [mm]	136
C [mm]	67
C [mm]	153
C [mm]	72
C [mm]	162
C [mm]	80
C [mm]	94
C [mm]	104
C [mm]	116
D [mm]	130
D [mm]	58.7
D [mm]	70
D [mm]	77.8
D [mm]	89
D [mm]	38
D [mm]	106.4
D [mm]	47.6
D [mm]	120.7
D [mm]	52.4
E [mm]	102
E [mm]	48
E [mm]	125
E [mm]	50
E [mm]	137
E [mm]	54
E [mm]	147
E [mm]	70
E [mm]	78
E [mm]	90
F [mm]	26.2
F [mm]	77.8
F [mm]	30.2
F [mm]	35.7
F [mm]	42.9
F [mm]	50.8
F [mm]	17.5
F [mm]	62
F [mm]	22.2
F [mm]	70
H [mm]	25
H [mm]	25
H [mm]	16
H [mm]	27
H [mm]	18
H [mm]	27
H [mm]	18
H [mm]	27
H [mm]	21
H [mm]	25
K [mm]	25
K [mm]	18
K [mm]	18
K [mm]	18
K [mm]	18
K [mm]	25
K [mm]	16
K [mm]	14
K [mm]	25
K [mm]	16
L [mm]	50
L [mm]	36
L [mm]	50
L [mm]	36
L [mm]	50
L [mm]	38
L [mm]	48
L [mm]	41
L [mm]	44
L [mm]	45
M [mm]	30
M [mm]	20
M [mm]	30
M [mm]	22
M [mm]	24
M [mm]	26
M [mm]	30
M [mm]	15
M [mm]	30
M [mm]	18
O-Ring	AN228
O-Ring	AN232
O-Ring	AN210
O-Ring	AN237
O-Ring	AN214
O-Ring	AN241
O-Ring	AN219
O-Ring	AN245
O-Ring	AN222
O-Ring	AN225
G	M12
G	M12
G	M12
G	M8
G	M16
G	M10
G	M16
G	M10
G	M16
G	M10
