DBV bis 7,6 L/Min

Danfoss/Eaton EPRV2-8 - Proportional Valve, Proportional reducing/relief, spool

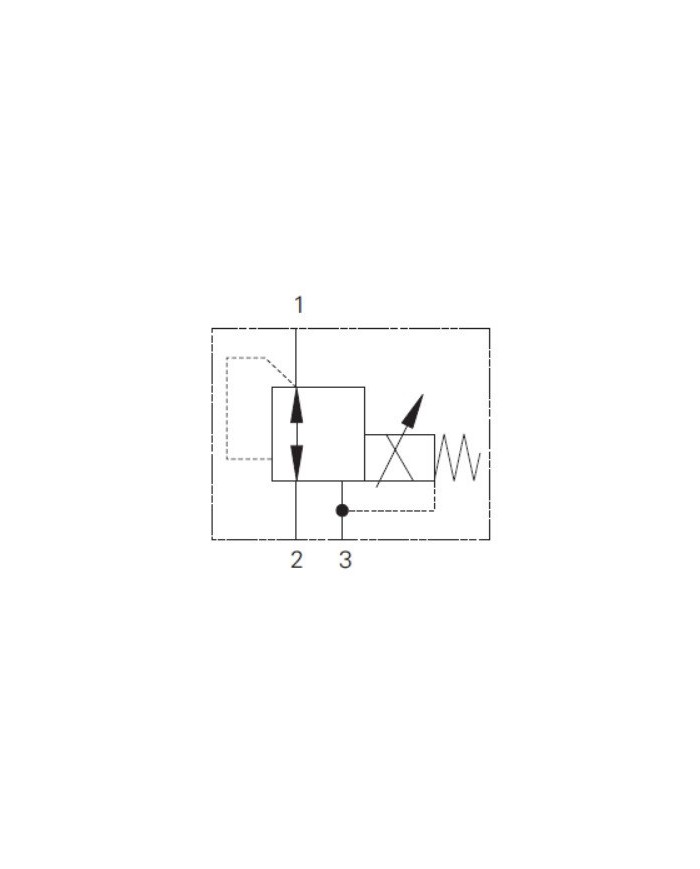

In the de-energized position, pressure inlet port 2 is closed and reduced pressure port 1 is open to return port 3. As electrical current is increased, port 2 opens to port 1 and port 3 closes, proportionally increasing pressure at port 1.

If the pressure at port 1 exceeds the setting of the valve, the spool will shift further and relieve to port 3.
