Rückschlagventil mit Innensechskant

GAS Cartridge - 350 bar - Direct acting - Poppet Type

Description

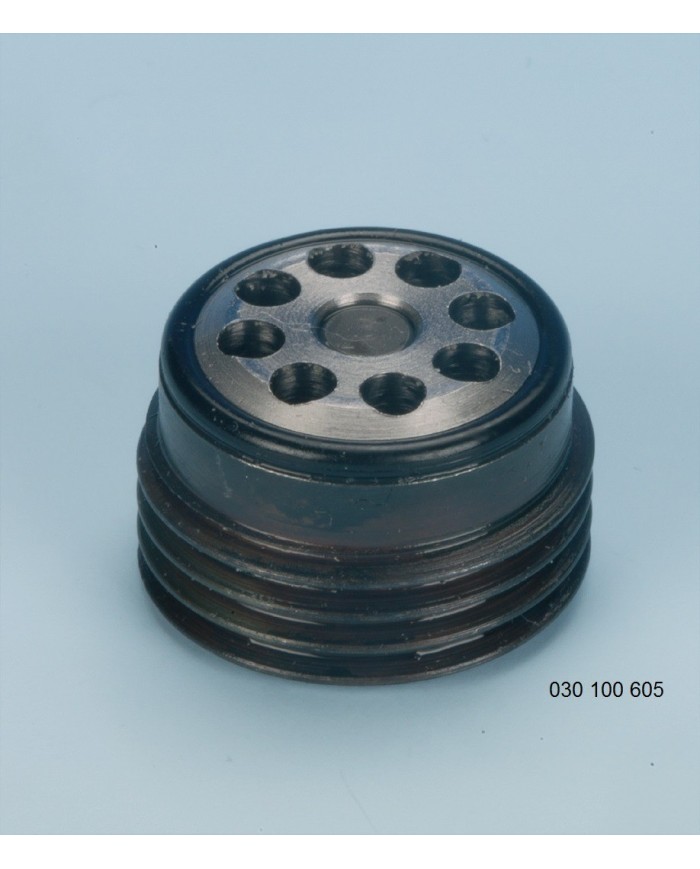

A screw-in, direct acting, poppet type in-line check valve.
Main use is as a blocking or load-holding device.

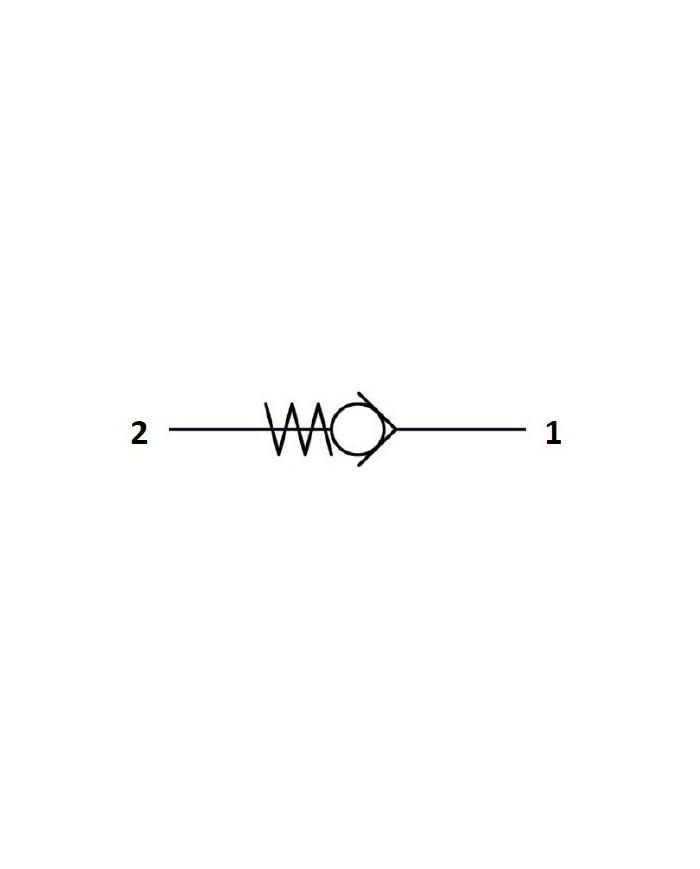

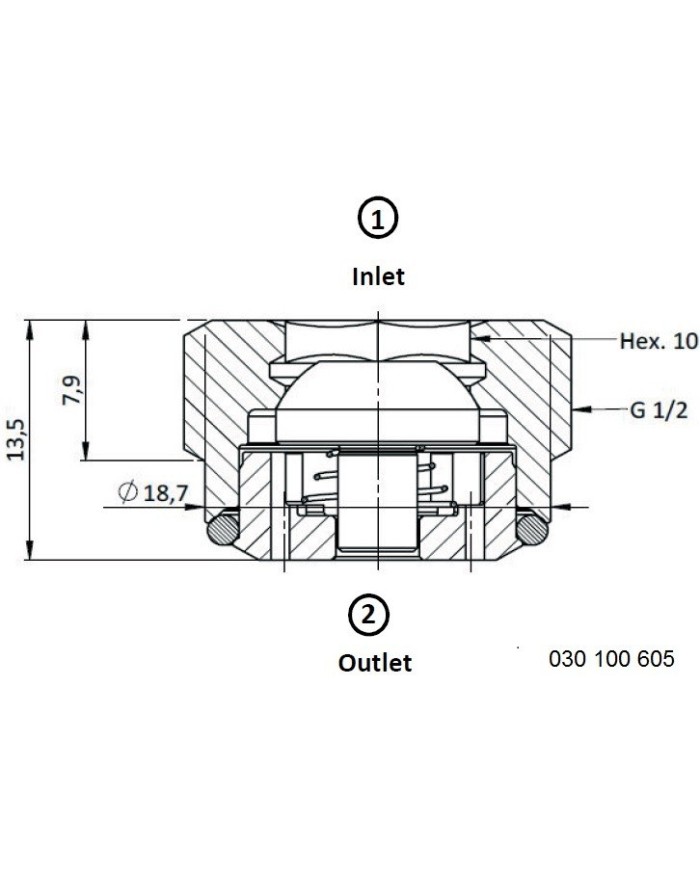

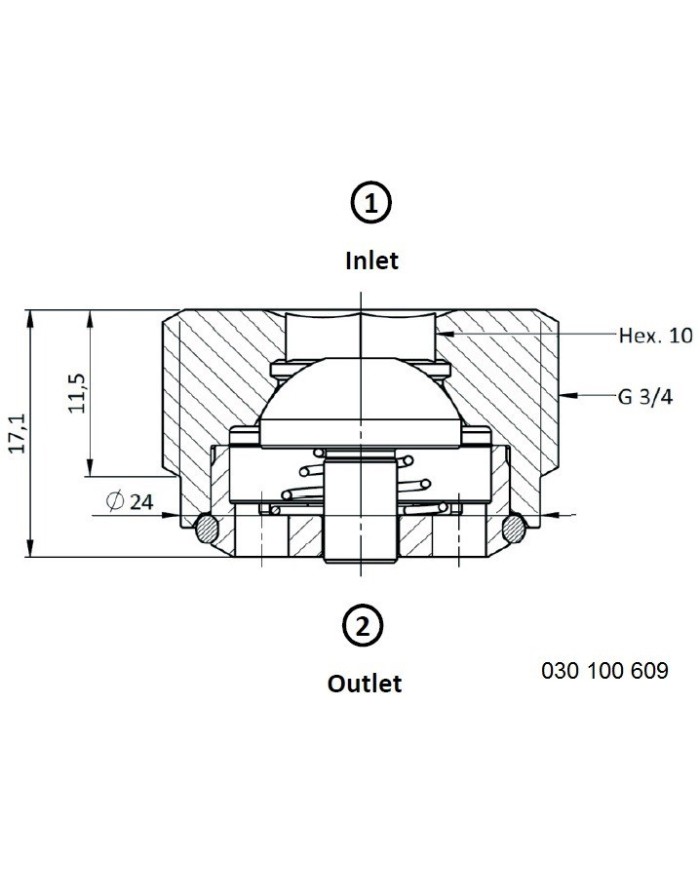

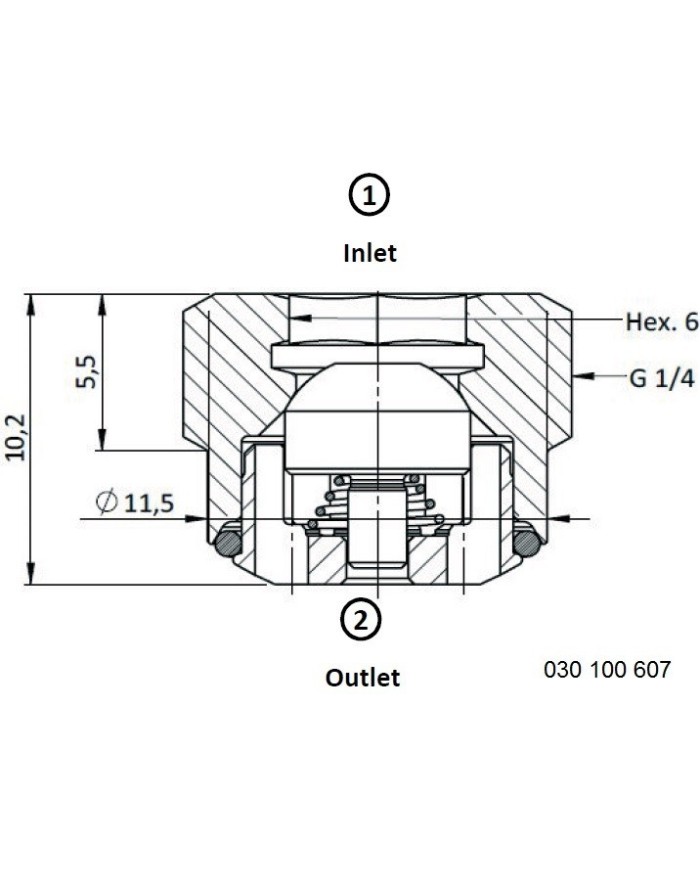

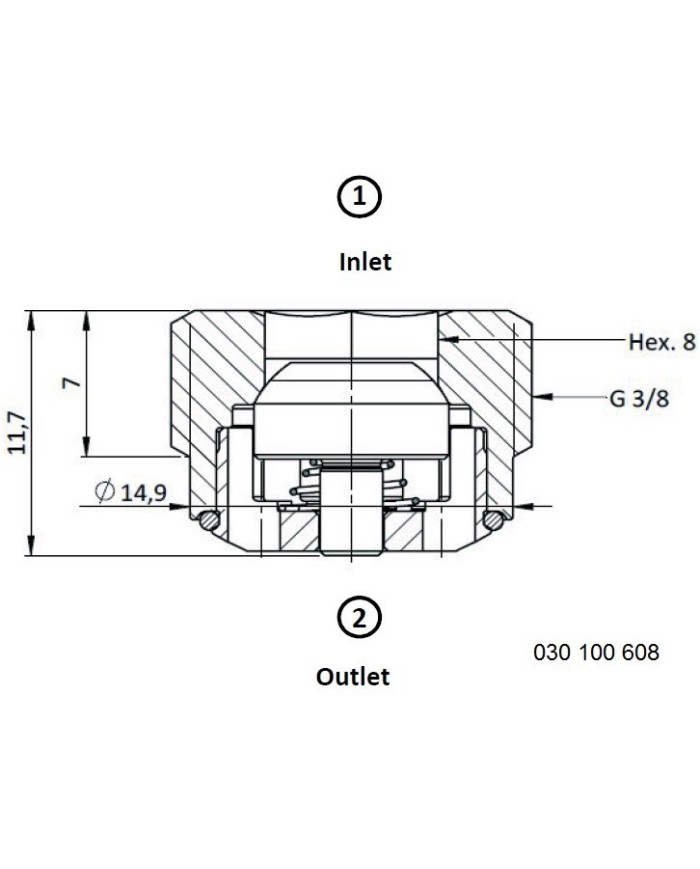

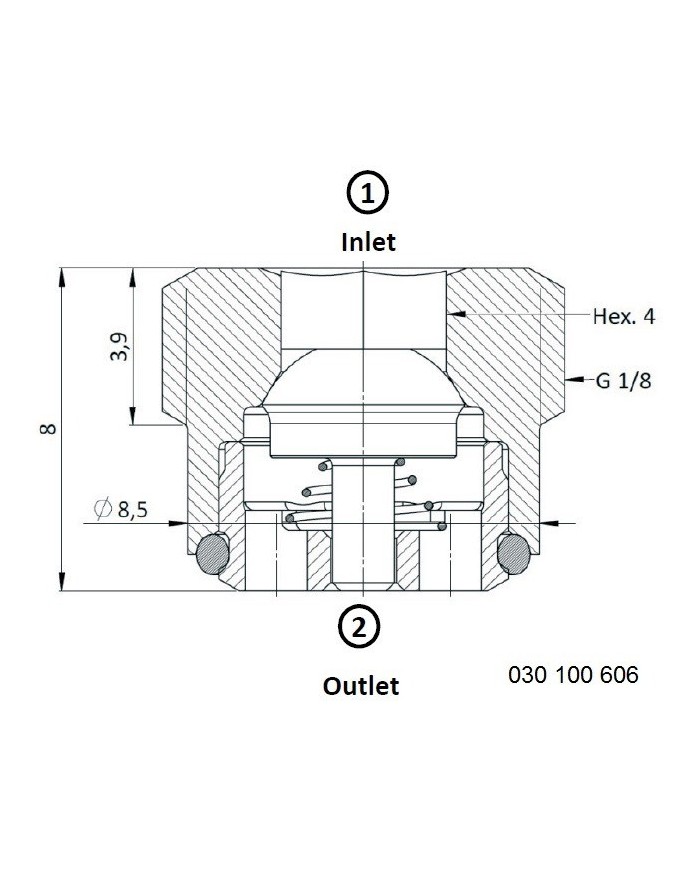

The CVR0 allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to 2 The flow is blocked in the opposite direction (2 to 1).

Technical Features
All valve parts are made of high strength steel. Poppet and seat are hardened and ground to guarantee low wear and to extend service life.
Suitable for heavy duty applications.
Extremely compact size.
Gas cavity.

Technical Data
Maximum operating pressure: 350 bar
Maximum flow: (see table next page)
Internal leakage: 0.10 cm3/min max @ 350 bar
Temperature: -30°C to 110°C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt
