Serie L Winkel Schottstutzen WSS

Name: Serie L Winkel Schottstutzen WSS
Brand: ATP Hydraulik Shop
SKU: 219

Eaton Walterscheid Verschraubungen

Zur Favoritenliste hinzufügen

Varianten

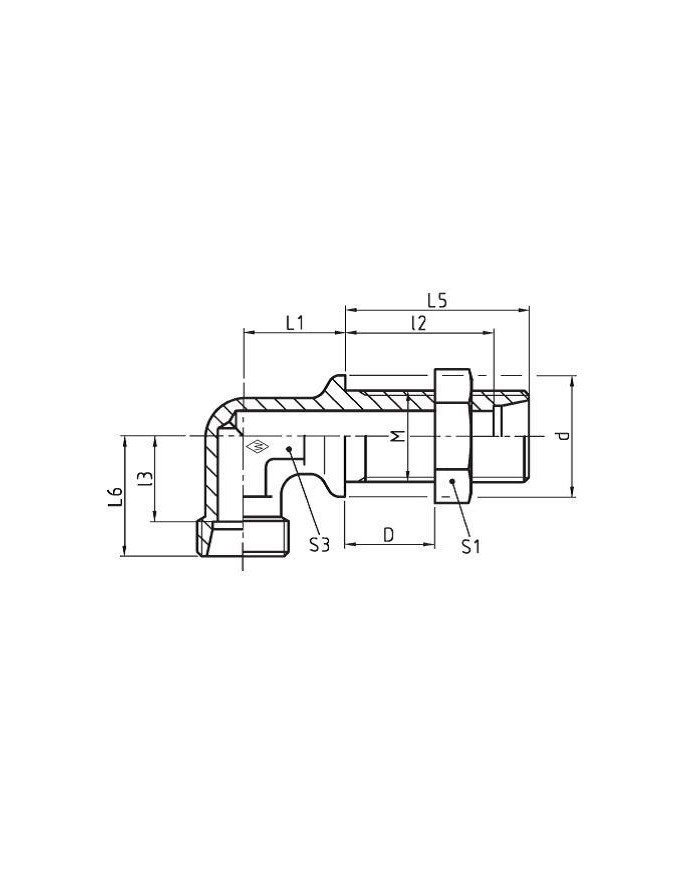

Artikel-Nr.	Variante	Model Code	max. Betriebsdruck [bar]	D [mm]	M [mm]	Gewicht per 100 Stk. [kg]	l2 [mm]	d [mm]	Rohr AD	L1 [mm]	L5 [mm]	S1 [mm]	L6 [mm]	S3 [mm]	l3 [mm]
041 128 560	1	WSS 6 L m. 6kt M	500 bar	4-16	12x1.5	5.0	27	17	6	14	34	17	19	12	12
041 128 580	2	WSS 8 L m. 6kt M	500 bar	4-16	14x1.5	6.5	27	19	8	17	34	19	21	12	14
041 128 600	3	WSS 10 L m. 6kt M	500 bar	4-16	16x1.5	8.0	28	22	10	18	35	22	22	14	15
041 128 620	4	WSS 12 L m. 6kt M	400 bar	4-16	18x1.5	10.0	29	24	12	20	36	24	24	17	17
041 128 650	5	WSS 15 L m. 6kt M	400 bar	4-16	22x1.5	17.0	31	27	15	23	38	30	28	19	21
041 128 680	6	WSS 18 L m. 6kt M	400 bar	4-16	26x1.5	24.0	32.5	32	18	24	40	36	31	24	23.5
041 128 720	7	WSS 22 L m. 6kt M	250 bar	5-16	30x2	64.2	34.5	36	22	30	42	41	35	27	27.5
041 128 780	8	WSS 28 L m. 6kt M	250 bar	5-16	36x2	44.5	35.5	42	28	34	43	46	38	36	30.5
041 128 850	9	WSS 35 L m. 6kt M	250 bar	5-16	45x2	68.8	36.5	50	35	39	47	55	45	41	34.5
041 128 920	10	WSS 42 L m. 6kt M	250 bar	5-16	52x2	196.7	36	60	42	43	47	65	51	50	40

Model Code	WSS 22 L m. 6kt M
Model Code	WSS 6 L m. 6kt M
Model Code	WSS 28 L m. 6kt M
Model Code	WSS 8 L m. 6kt M
Model Code	WSS 35 L m. 6kt M
Model Code	WSS 10 L m. 6kt M
Model Code	WSS 42 L m. 6kt M
Model Code	WSS 12 L m. 6kt M
Model Code	WSS 15 L m. 6kt M
Model Code	WSS 18 L m. 6kt M
max. Betriebsdruck [bar]	250 bar
max. Betriebsdruck [bar]	400 bar
max. Betriebsdruck [bar]	400 bar
max. Betriebsdruck [bar]	400 bar
max. Betriebsdruck [bar]	250 bar
max. Betriebsdruck [bar]	500 bar
max. Betriebsdruck [bar]	250 bar
max. Betriebsdruck [bar]	500 bar
max. Betriebsdruck [bar]	250 bar
max. Betriebsdruck [bar]	500 bar
D [mm]	4-16
D [mm]	5-16
D [mm]	4-16
D [mm]	4-16
D [mm]	4-16
D [mm]	5-16
D [mm]	4-16
D [mm]	5-16
D [mm]	4-16
D [mm]	5-16
M [mm]	26x1.5
M [mm]	30x2
M [mm]	12x1.5
M [mm]	36x2
M [mm]	14x1.5
M [mm]	45x2
M [mm]	16x1.5
M [mm]	52x2
M [mm]	18x1.5
M [mm]	22x1.5
Gewicht per 100 Stk. [kg]	64.2
Gewicht per 100 Stk. [kg]	5.0
Gewicht per 100 Stk. [kg]	44.5
Gewicht per 100 Stk. [kg]	6.5
Gewicht per 100 Stk. [kg]	68.8
Gewicht per 100 Stk. [kg]	8.0
Gewicht per 100 Stk. [kg]	196.7
Gewicht per 100 Stk. [kg]	10.0
Gewicht per 100 Stk. [kg]	17.0
Gewicht per 100 Stk. [kg]	24.0
l2 [mm]	31
l2 [mm]	32.5
l2 [mm]	34.5
l2 [mm]	27
l2 [mm]	35.5
l2 [mm]	27
l2 [mm]	36.5
l2 [mm]	28
l2 [mm]	36
l2 [mm]	29
d [mm]	24
d [mm]	27
d [mm]	32
d [mm]	36
d [mm]	17
d [mm]	42
d [mm]	19
d [mm]	50
d [mm]	22
d [mm]	60
Rohr AD	8
Rohr AD	35
Rohr AD	10
Rohr AD	42
Rohr AD	12
Rohr AD	15
Rohr AD	18
Rohr AD	22
Rohr AD	6
Rohr AD	28
L1 [mm]	39
L1 [mm]	18
L1 [mm]	43
L1 [mm]	20
L1 [mm]	23
L1 [mm]	24
L1 [mm]	30
L1 [mm]	14
L1 [mm]	34
L1 [mm]	17
L5 [mm]	43
L5 [mm]	34
L5 [mm]	47
L5 [mm]	35
L5 [mm]	47
L5 [mm]	36
L5 [mm]	38
L5 [mm]	40
L5 [mm]	42
L5 [mm]	34
S1 [mm]	36
S1 [mm]	17
S1 [mm]	41
S1 [mm]	46
S1 [mm]	19
S1 [mm]	55
S1 [mm]	22
S1 [mm]	65
S1 [mm]	24
S1 [mm]	30
L6 [mm]	28
L6 [mm]	31
L6 [mm]	35
L6 [mm]	19
L6 [mm]	38
L6 [mm]	21
L6 [mm]	45
L6 [mm]	22
L6 [mm]	51
L6 [mm]	24
S3 [mm]	36
S3 [mm]	12
S3 [mm]	41
S3 [mm]	14
S3 [mm]	50
S3 [mm]	17
S3 [mm]	19
S3 [mm]	24
S3 [mm]	27
S3 [mm]	12
l3 [mm]	21
l3 [mm]	23.5
l3 [mm]	27.5
l3 [mm]	12
l3 [mm]	30.5
l3 [mm]	14
l3 [mm]	34.5
l3 [mm]	15
l3 [mm]	40
l3 [mm]	17
