DBV bis 114 L/Min

Danfoss/Eaton Model RV2-10

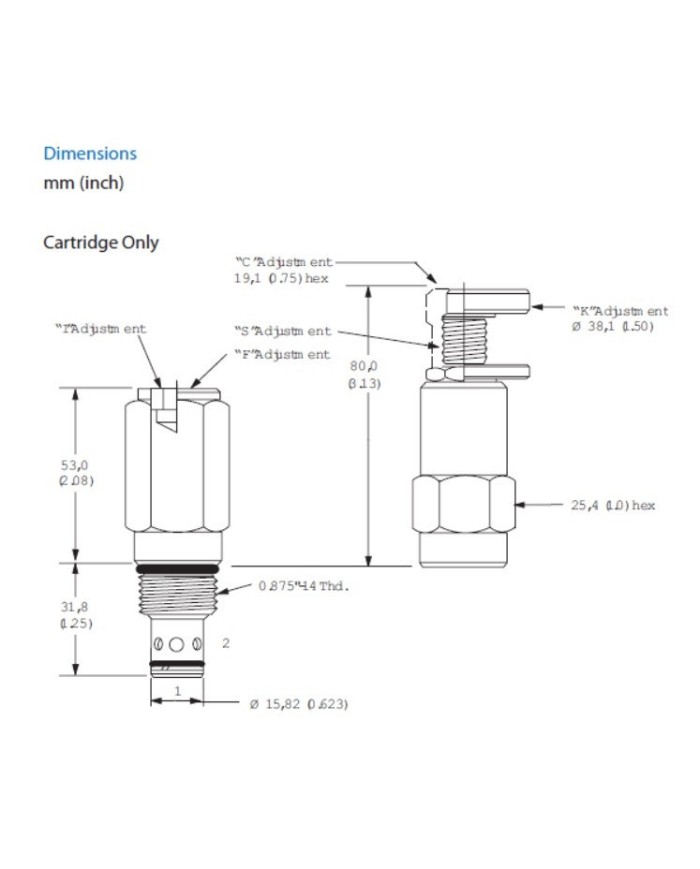

Cavity C-10–2 Size 10

Danfoss/Eaton RV2-10 - Relief Valve

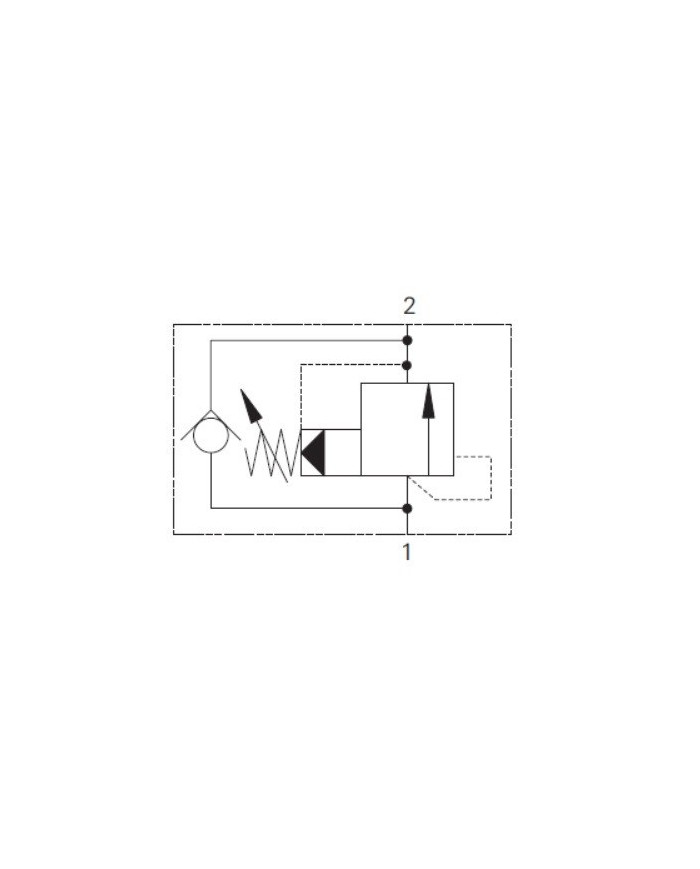

Poppet, pilot operated with reverse flow check

Operation
When the inlet reaches the valve setting, the pilot section opens, causing a small flow across the orifice in the poppet.
The subsequent pressure drop moves the poppet, opening the valve, allowing relief flow to tank.

Zur Favoritenliste hinzufügen

Varianten

Artikel-Nr.	Variante	Model Code	Anschluss	Öffnungsdruck [bar]	Hinweis	Standard-Einstellung [bar]	Durchfluss Bereich [L/Min]
307 303 005	1	RV2-10-I-0-20/7	cartridge only	7-140	Internal	350	12–114

Model Code	RV2-10-I-0-20/7
Anschluss	cartridge only
Öffnungsdruck [bar]	7-140
Hinweis	Internal
Standard-Einstellung [bar]	350
Durchfluss Bereich [L/Min]	12–114
