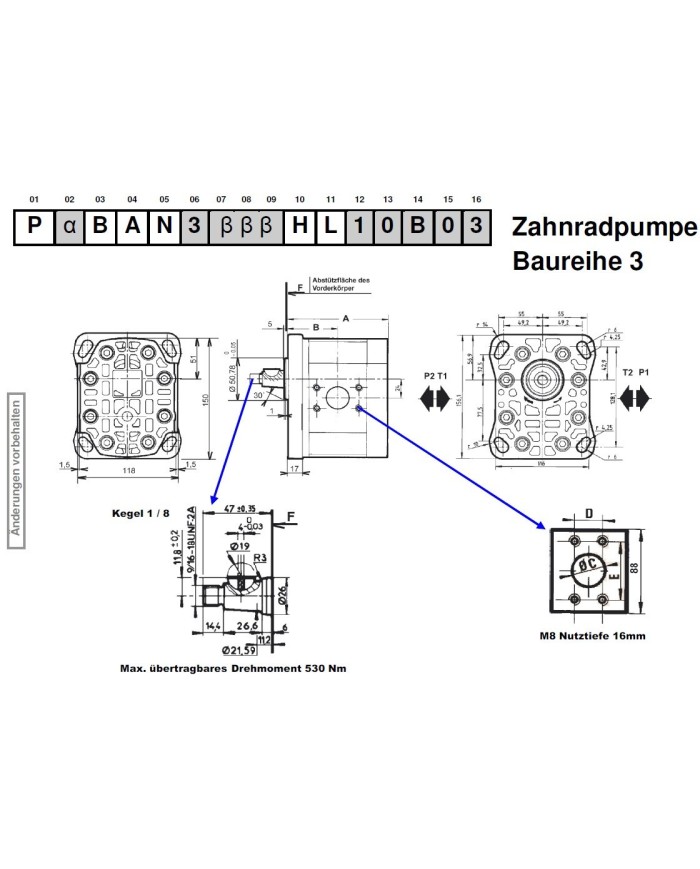

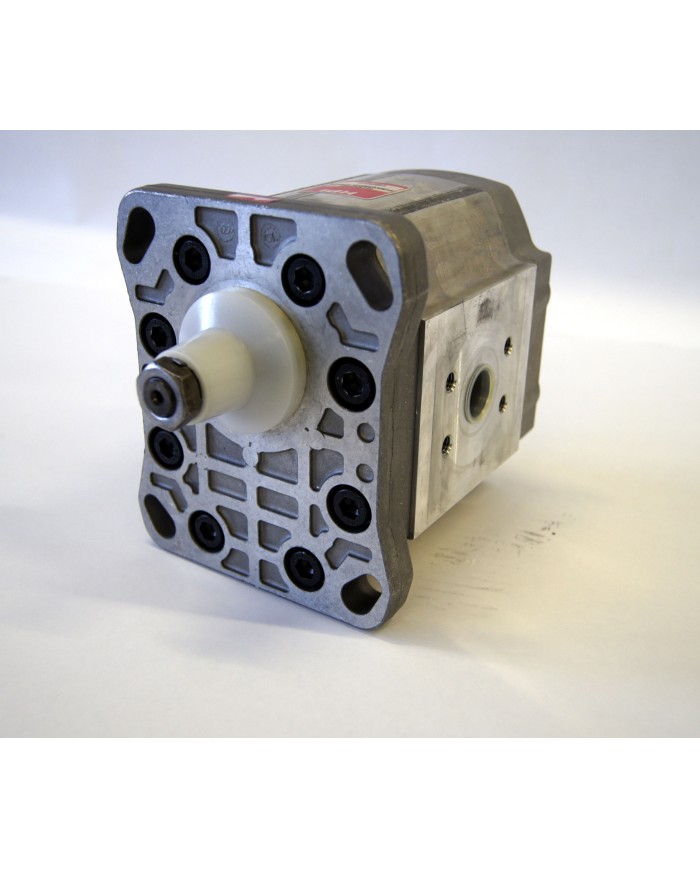

4-Lochflansch, Welle Kegel 1:8
P_ BAN 3_ _ _ HL 10 B03 ;
4-Loch-Flansch ;
Welle Kegel 1:8 ;
Anschluss Flansch
P_ BAN 3_ _ _ HL 10 B03
4-Loch-Flansch
Abstand 128.1x98.4mm
Zentrierung Ø 50.78mm
Welle Kegel 1:8
Dm 26mm, Länge 26.6mm
Gewinde 9/16" 18UNF2A
Anschluss Flansch
M8 Nutztiefe 16mm
Preise sind nur für registrierte Nutzer (B2B-Kunden) sichtbar.
Einloggen
kostenlos registrieren
Varianten
| Artikel-Nr. | Variante | Model Code | Drehrichtung | Fördervolumen [cm3/U] | Druck [bar] | A [mm] | B [mm] | C [mm] (Saugs./ Drucks.) | D [mm] (Saugs./ Drucks.) | E [mm] (Saugs./ Drucks.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 371 401 100 | 1 | P1 BAN 3020 HL 10 B03 | CW | 21.1 cm3 | 275 bar | 122.7 | 61.3 | 28.0/18.0 | 52.4/52.4 | 26.2/26.2 |
| 371 401 110 | 2 | P1 BAN 3025 HL 10 B03 | CW | 25.8 cm3 | 275 bar | 122.7 | 61.3 | 28.0/18.0 | 52.4/52.4 | 26.2/26.2 |
| 371 401 120 | 3 | P2 BAN 3025 HL 10 B03 | CCW | 25.8 cm3 | 275 bar | 122.7 | 61.3 | 28.0/18.0 | 52.4/52.4 | 26.2/26.2 |
| 371 401 210 | 4 | P1 BAN 3031 HL 10 B03 | CW | 32.1 cm3 | 275 bar | 122.7 | 61.3 | 28.0/18.0 | 52.4/52.4 | 26.2/26.2 |
| 371 401 310 | 5 | P1 BAN 3040 HL 10 B03 | CW | 41.5 cm3 | 275 bar | 122.7 | 61.3 | 28.0/18.0 | 52.4/52.4 | 26.2/26.2 |
| 371 401 320 | 7 | P1 BAN 3050 HL 10 B03 | CW | 51.65 cm3 | 250 bar | 122.7 | 61.3 | 28.0/18.0 | 52.4/52.4 | 26.2/26.2 |
| 371 401 510 | 8 | P1 BAN 3060 HL 10 B03 N | CW | 62.6 cm3 | 225 bar | 149.2 | 74.5 | 42.0/22.0 | 35.6/52.4 | 69.8/26.2 |
| 371 401 520 | 9 | P2 BAN 3060 HL 10 B03 | CCW | 62.6 cm3 | 225 bar | 149.2 | 74.5 | 42.0/22.0 | 35.6/52.4 | 69.8/26.2 |
| 371 401 610 | 10 | P1 BAN 3071 HL 10 B03 | CW | 73.55 cm3 | 225 bar | 169.2 | 84.2 | 42.0/22.0 | 35.6/52.4 | 69.8/26.2 |
| 371 401 810 | 11 | P1 BAN 3090 HL 10 B03 | CW | 92.95 cm3 | 225 bar | 169.2 | 84.2 | 42.0/22.0 | 35.6/52.4 | 69.8/26.2 |
| 371 401 410 | 12 | P1 BAN 3050 HL 10 B03 | CW | 51.65 cm3 | 250 bar | 149.2 | 74.5 | 42.0/22.0 | 35.6/52.4 | 69.8/26.2 |
