bis 114 L/Min.
EATON Model SBV11

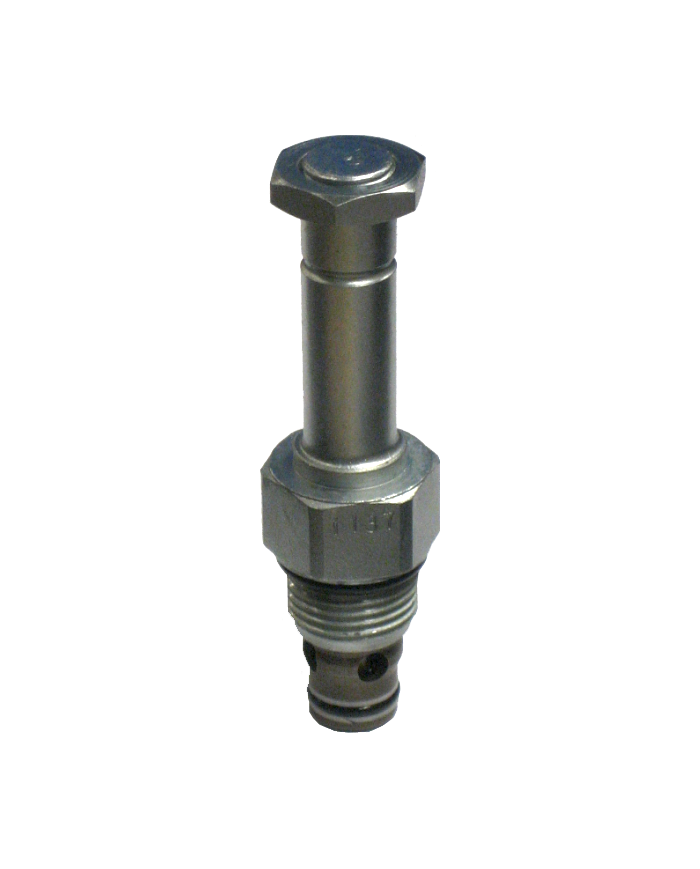

Eaton - SBV11 - Solenoid Valve - normally closed, bi-directional, poppet type solenoid valve
2-way, 2-position
2/2-Wege-Sitzventile elektrisch betätigt
Operation

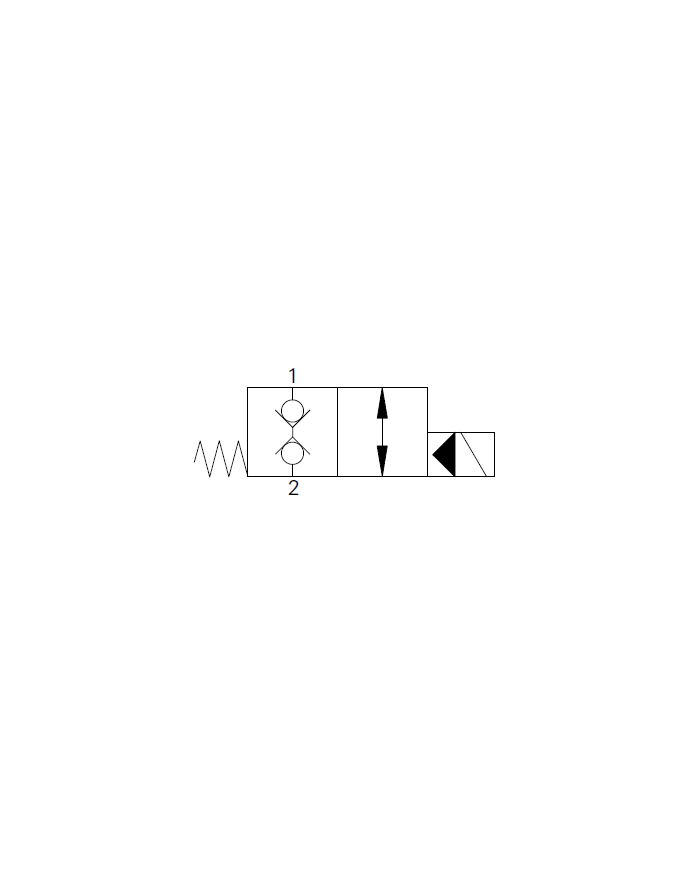

In the de-energized position the valve is blocked in both directions. When the solenoid is energized the pilot poppet is released from the seat allowing the main poppet to open.
A series of internal check valves allows full flow in both directions.
Description
This is a 2-way 2-position, high pressure bi-directional, pilot operated, normally closed poppet type screw in cartridge valve. The valve is ideal for isolating and holding actuators in position.
The coil is not included in delivery - die Magnetspule ist im Lieferumfang nicht enthalten.
Zubehör:
Magnetspule Eaton ToughCoil
Preise sind nur für registrierte Nutzer (B2B-Kunden) sichtbar.
Einloggen
kostenlos registrieren
Varianten
| Artikel-Nr. | Variante | Model Code | Danfoss/Eaton Produkt-Nr. | max. Betriebsdruck [bar] | max. Durchfluss [L/Min] | Dichtung | Zubehör Spule Serie |
|---|---|---|---|---|---|---|---|

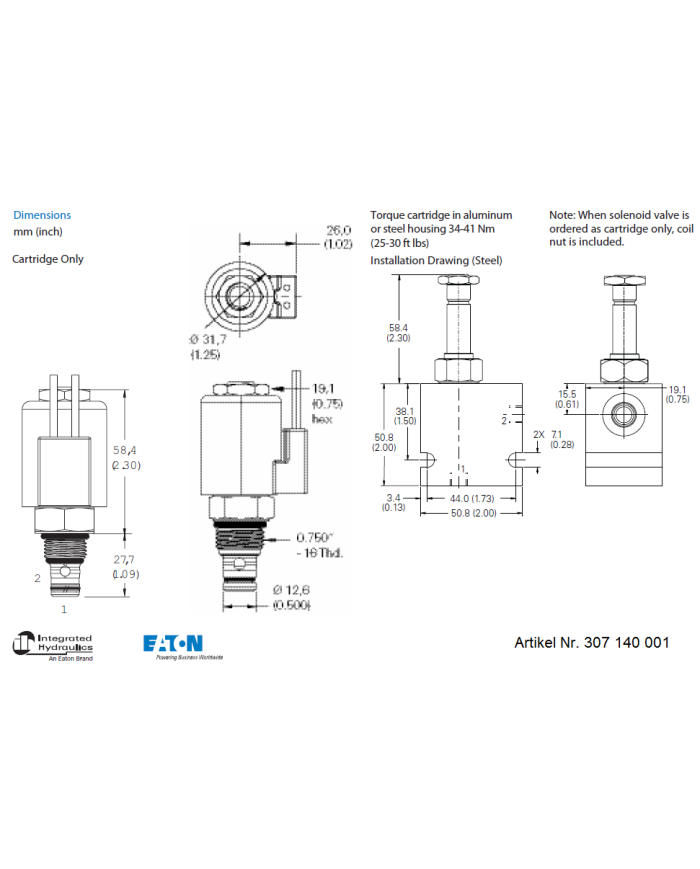

| 307 140 001 | 1 | SBV11-8-C-000 | 02-177582 | 350 | 60 | Buna-N | P |

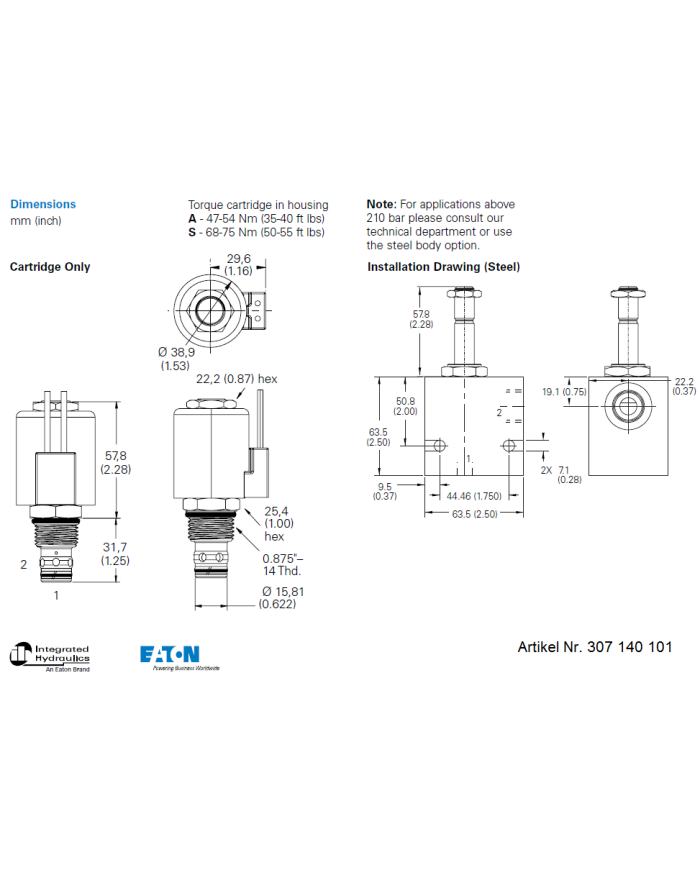

| 307 140 101 | 2 | SBV11-10-C-000 | 02-177580 | 350 | 76 | Buna-N | H |

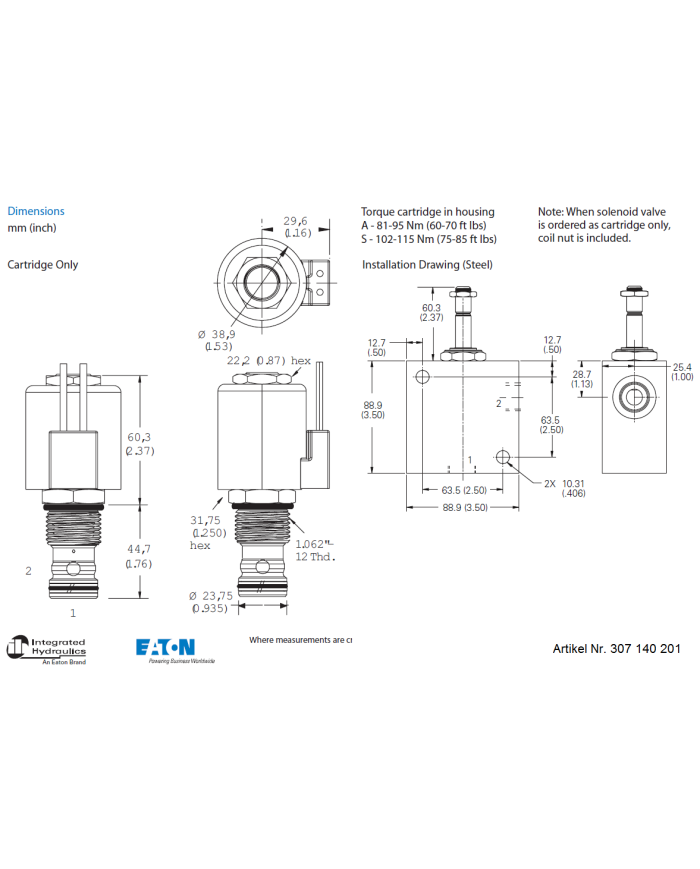

| 307 140 201 | 3 | SBV11-12-C-000 | 02-177576 | 350 | 114 | Buna-N | H |
