DBV 30 L/Min

Danfoss/Eaton Model RV8-8
Cavity C-8–2 Size 8

Danfoss/Eaton RV8-8 - Relief Valve
Poppet, differential area

Operation

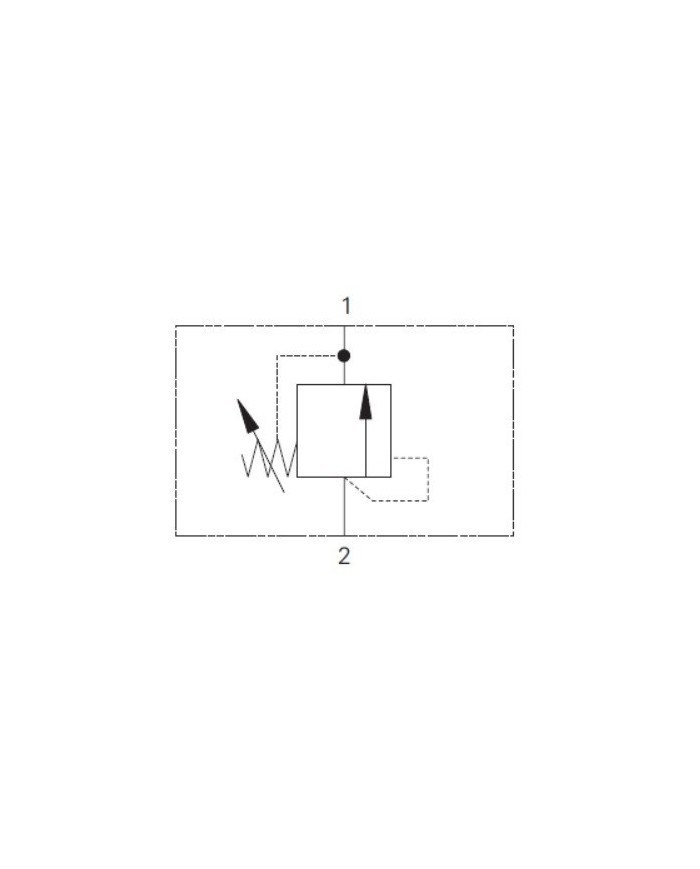

The RV8-8 remains closed until the predetermined setting is reached at port 2.

The force created by the pressure acting on the differential poppet area lifts the poppet off the seat and allows flow from port 2 to port 1.

Artikel-Nr.	Variante	Model Code	max. Durchfluss [L/Min]	Anschluss	Öffnungsdruck [bar]	Dichtung	Hinweis	Standard-Einstellung [bar]

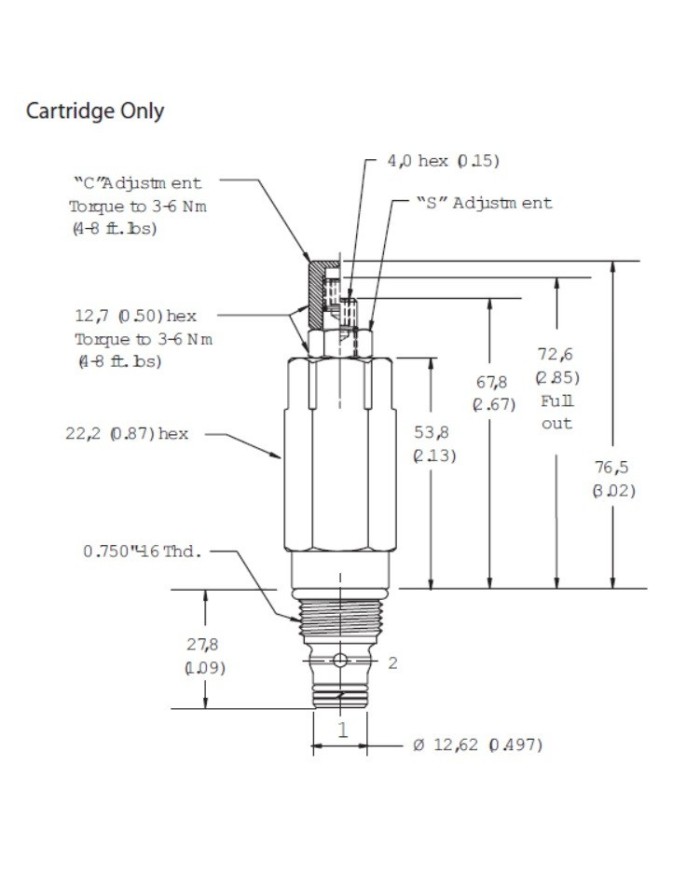

307 303 130	1	RV8-8-S-0-30	30	cartridge only	70-210	Buna-N	Screw	100

Eaton Vickers RV8-8 - Relief Valve
