DFV bis 23 L/Min.

Danfoss/Eaton Model PSV7-10
Cavity C-10–3 Size 10

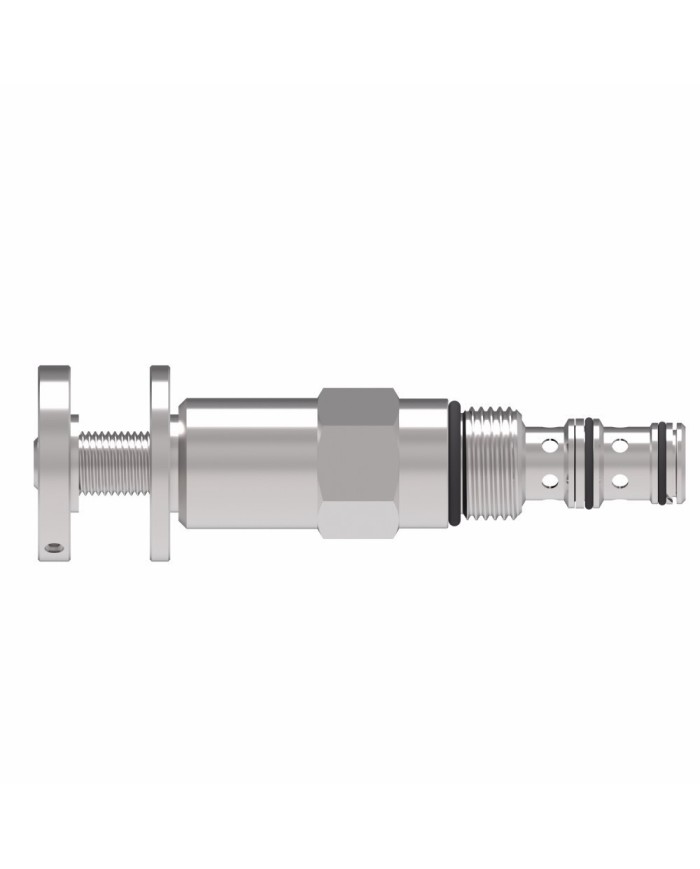

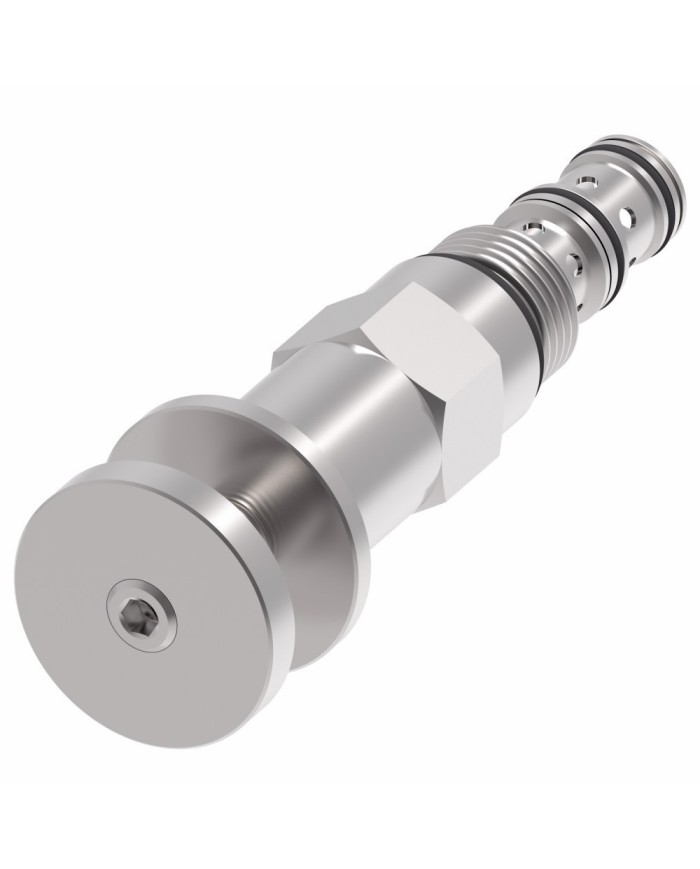

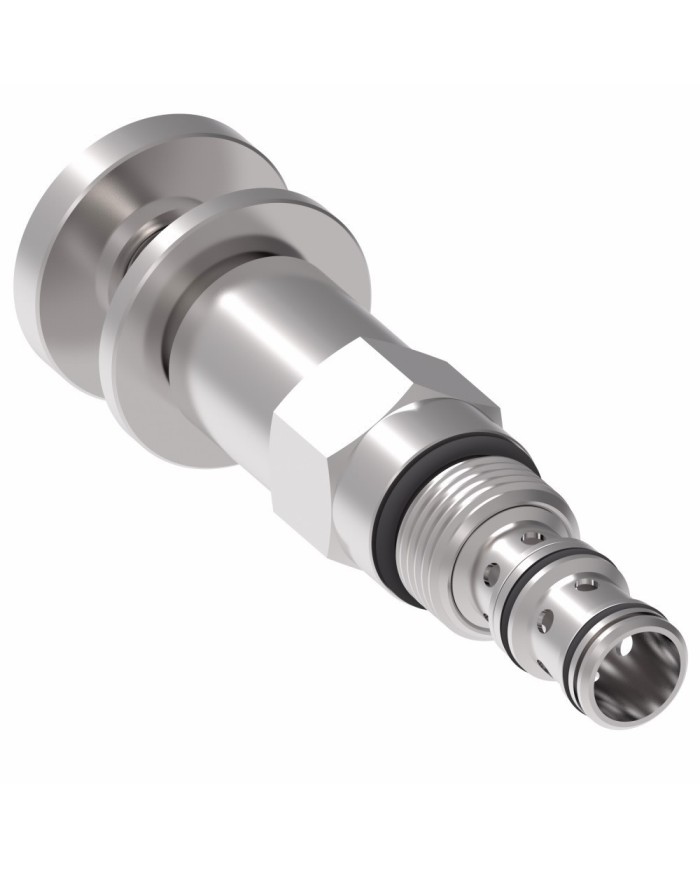

PSV7-10 - Pressure Sequence Valve

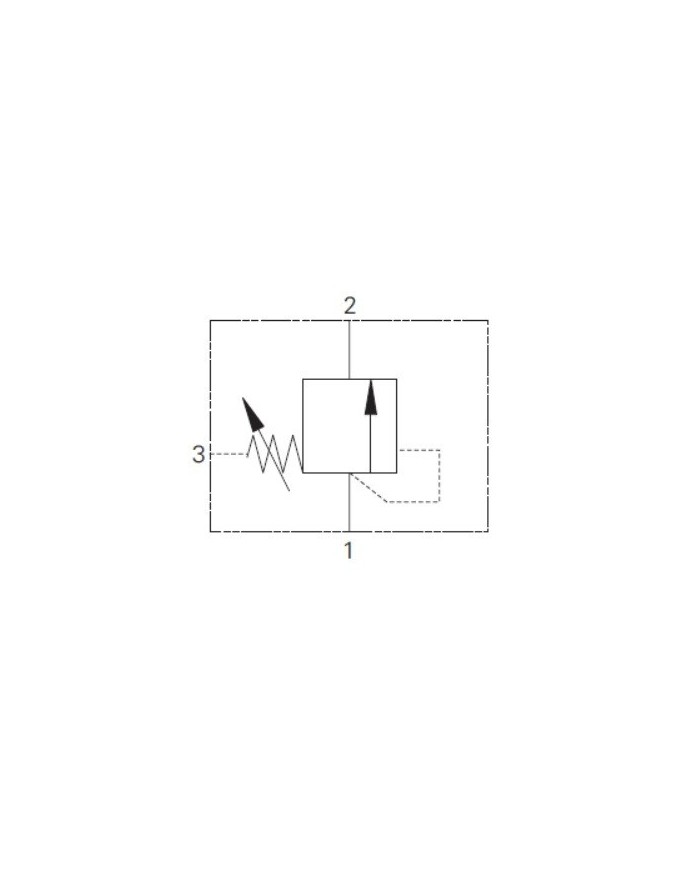

Spool, direct acting, normally closed, internal pilot, external drain

Operation
As with the direct acting relief valves, when the pressure exceeds the spring force, the spool moves back, opening the inlet to outlet.

Artikel-Nr.	Variante	Model Code	Anschluss	Einschraubbohrung	Einstellbereich [bar]	Dichtung	Hinweis	Standard-Einstellung [bar]	Nennvolumenstrom [L/Min.]
307 304 070	1	PSV7-10-K-0-3	cartridge only	C-10-3	5-20	b	Knob	210	23

Eaton Vickers PSV7-10 - Pressure Sequence Valve
