3000 PSI rostfreier Stahl 1.4404

Name: 3000 PSI rostfreier Stahl 1.4404
Brand: ATP Hydraulik Shop
SKU: 406

komplett mit M-Schrauben und O-Ringen

Zur Favoritenliste hinzufügen

Varianten

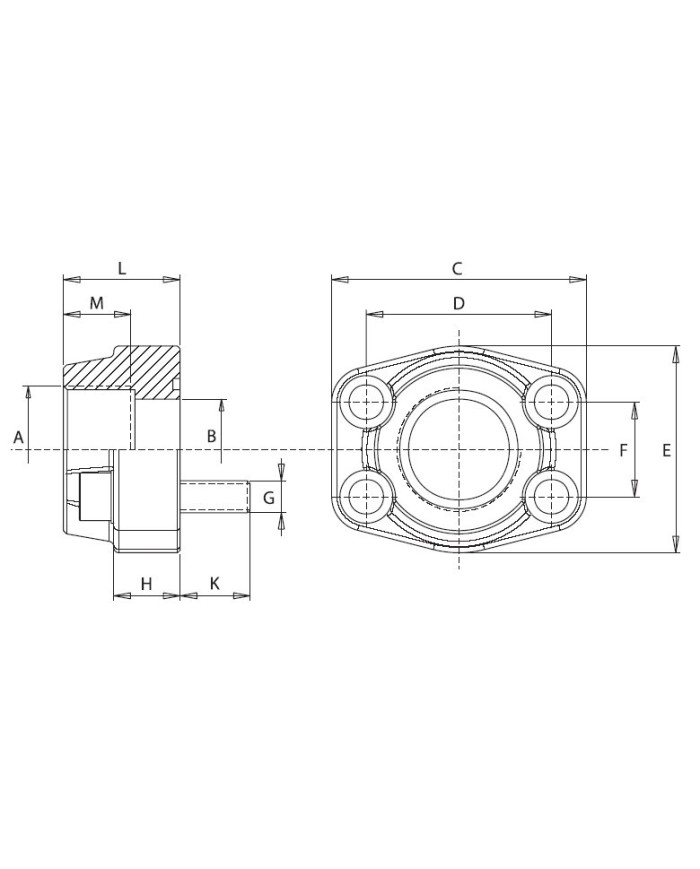

Artikel-Nr.	Variante	Model Code	max. Betriebsdruck [bar]	A ["]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	H [mm]	K [mm]	L [mm]	M [mm]	O-Ring	G
070 511 206	1	RF-C.F.S. 080-GAS-M	348	1/2"	13	57	38	47	17.5	16	14	36	15	AN210	M8
070 511 208	2	RF-C.F.S. 100-GAS-M	348	3/4"	19	66	47.6	49	22.2	18	16	36	18	AN214	M10
070 511 212	3	RF-C.F.S. 102-GAS-M	348	1"	25	71	52.4	53	26.2	18	16	38	20	AN219	M10
070 511 213	4	RF-C.F.S. 104-GAS-M	278	1 1/4"	31	80	58.7	69	30.2	21	18	41	22	AN222	M10
070 511 216	5	RF-C.F.S. 106-GAS-M	210	1 1/2"	38	94	70	77	35.7	25	18	44	24	AN225	M12
070 511 221	6	RF-C.F.S. 108-GAS-M	210	2"	50	103	77.8	89	42.9	25	18	45	26	AN228	M12
070 511 226	7	RF-C.F.S. 110-GAS-M	175	2 1/2"	63	115	89	101	50.8	25	18	50	30	AN232	M12
070 511 231	8	RF-C.F.S. 112-GAS-M	138	3"	73	135	106.4	124	62	27	25	50	30	AN237	M16
070 511 236	9	RF-C.F.S. 114-GAS-M	35	3 1/2"	89	152	120.7	136	70	27	25	50	30	AN241	M16
070 511 241	10	RF-C.F.S. 116-GAS-M	35	4"	99	162	130	146	77.8	27	25	50	30	AN245	M16
