3000 PSI Stahl S355J2

Name: 3000 PSI Stahl S355J2
Brand: ATP Hydraulik Shop
SKU: 128

komplett mit UNC-Schrauben und O-Ringen

Zur Favoritenliste hinzufügen

Varianten

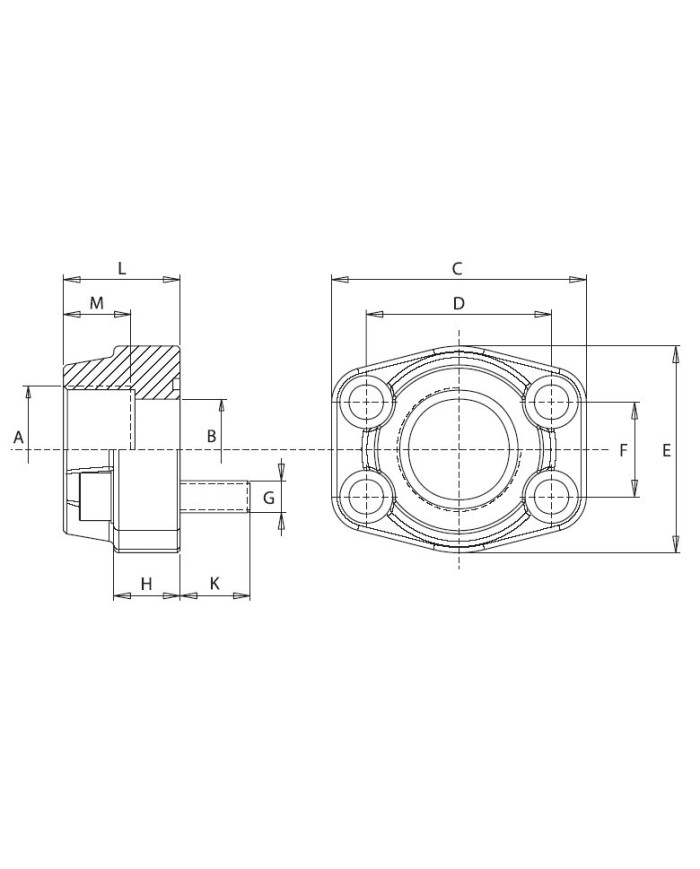

Artikel-Nr.	Variante	Model Code	max. Betriebsdruck [bar]	A ["]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	H [mm]	K [mm]	L [mm]	M [mm]	O-Ring	G ["]
070 511 255	1	C.F.S. 080-GAS-U	345	1/2"	13	58	38	48	17.5	16	14	36	15	AN210	5/16"
070 511 257	2	C.F.S. 100-GAS-U	345	3/4"	19	67	47.6	50	22.2	18	16	36	18	AN214	3/8"
070 511 260	3	C.F.S. 102-GAS-U	345	1"	25	72	52.4	54	26.2	18	16	38	20	AN219	3/8"
070 511 261	4	C.F.S. 104-GAS-U	275	1 1/4"	31	81	58.7	70	30.2	21	18	41	22	AN222	7/16"
070 511 265	5	C.F.S. 106-GAS-U	200	1 1/2"	38	95	70	78	35.7	25	18	44	24	AN225	1/2"
070 511 270	6	C.F.S. 108-GAS-U	200	2"	50	104	77.8	90	42.9	25	18	45	26	AN228	1/2"
070 511 275	7	C.F.S. 110-GAS-U	170	2 1/2"	63	116	89	102	50.8	25	18	50	30	AN232	1/2"
070 511 277	8	C.F.S. 112-GAS-U	135	3"	73	136	106.4	125	62	27	25	50	30	AN237	5/8"
070 511 280	9	C.F.S. 114-GAS-U	35	3 1/2"	89	153	120.7	137	70	27	25	50	30	AN241	5/8"
070 511 285	10	C.F.S. 116-GAS-U	35	4"	99	163	130	147	77.8	27	25	50	30	AN245	5/8"

Model Code	C.F.S. 106-GAS-U
Model Code	C.F.S. 108-GAS-U
Model Code	C.F.S. 110-GAS-U
Model Code	C.F.S. 080-GAS-U
Model Code	C.F.S. 112-GAS-U
Model Code	C.F.S. 100-GAS-U
Model Code	C.F.S. 114-GAS-U
Model Code	C.F.S. 102-GAS-U
Model Code	C.F.S. 116-GAS-U
Model Code	C.F.S. 104-GAS-U
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	35
max. Betriebsdruck [bar]	275
max. Betriebsdruck [bar]	200
max. Betriebsdruck [bar]	200
max. Betriebsdruck [bar]	170
max. Betriebsdruck [bar]	345
max. Betriebsdruck [bar]	135
A ["]	1 1/2"
A ["]	2"
A ["]	2 1/2"
A ["]	1/2"
A ["]	3"
A ["]	3/4"
A ["]	3 1/2"
A ["]	1"
A ["]	4"
A ["]	1 1/4"
B [mm]	73
B [mm]	19
B [mm]	89
B [mm]	25
B [mm]	99
B [mm]	31
B [mm]	38
B [mm]	50
B [mm]	63
B [mm]	13
C [mm]	81
C [mm]	95
C [mm]	104
C [mm]	116
C [mm]	58
C [mm]	136
C [mm]	67
C [mm]	153
C [mm]	72
C [mm]	163
D [mm]	89
D [mm]	38
D [mm]	106.4
D [mm]	47.6
D [mm]	120.7
D [mm]	52.4
D [mm]	130
D [mm]	58.7
D [mm]	70
D [mm]	77.8
E [mm]	147
E [mm]	70
E [mm]	78
E [mm]	90
E [mm]	102
E [mm]	48
E [mm]	125
E [mm]	50
E [mm]	137
E [mm]	54
F [mm]	42.9
F [mm]	50.8
F [mm]	17.5
F [mm]	62
F [mm]	22.2
F [mm]	70
F [mm]	26.2
F [mm]	77.8
F [mm]	30.2
F [mm]	35.7
H [mm]	27
H [mm]	18
H [mm]	27
H [mm]	21
H [mm]	25
H [mm]	25
H [mm]	25
H [mm]	16
H [mm]	27
H [mm]	18
K [mm]	18
K [mm]	25
K [mm]	16
K [mm]	14
K [mm]	25
K [mm]	16
K [mm]	25
K [mm]	18
K [mm]	18
K [mm]	18
L [mm]	38
L [mm]	50
L [mm]	41
L [mm]	44
L [mm]	45
L [mm]	50
L [mm]	36
L [mm]	50
L [mm]	36
L [mm]	50
M [mm]	26
M [mm]	30
M [mm]	15
M [mm]	30
M [mm]	18
M [mm]	30
M [mm]	20
M [mm]	30
M [mm]	22
M [mm]	24
O-Ring	AN241
O-Ring	AN219
O-Ring	AN245
O-Ring	AN222
O-Ring	AN225
O-Ring	AN228
O-Ring	AN232
O-Ring	AN210
O-Ring	AN237
O-Ring	AN214
G ["]	5/8"
G ["]	3/8"
G ["]	5/8"
G ["]	3/8"
G ["]	5/8"
G ["]	7/16"
G ["]	1/2"
G ["]	1/2"
G ["]	1/2"
G ["]	5/16"

Download:

Katalog ATP SAE Flansche - Stahl

SAE Flansche - Stahl

Download (660.4KB)
