RSV bis 30 L/Min.

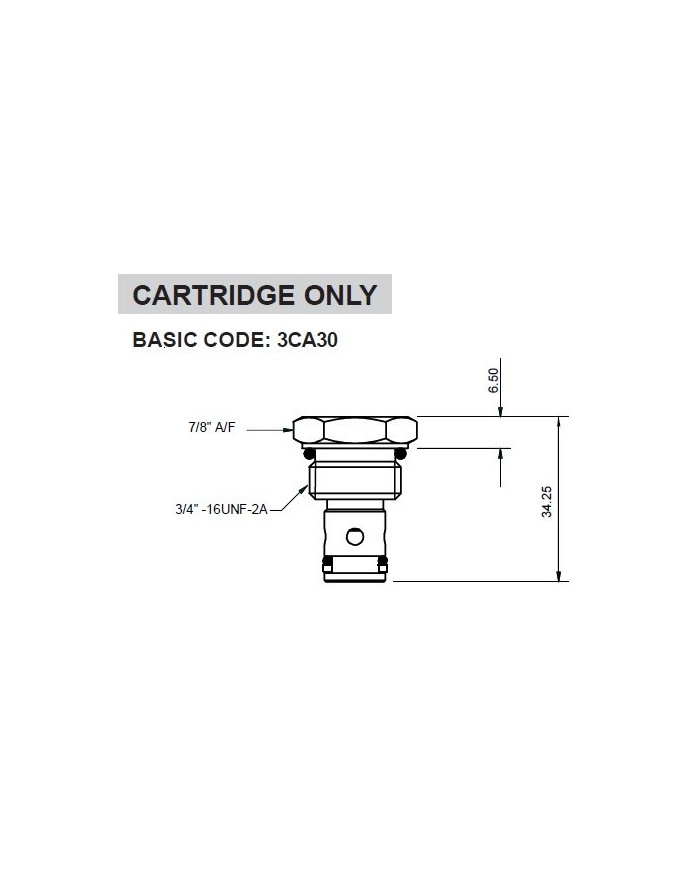

Eaton Integrated - 3CA30 - Check Valve - Poppet Type

Application

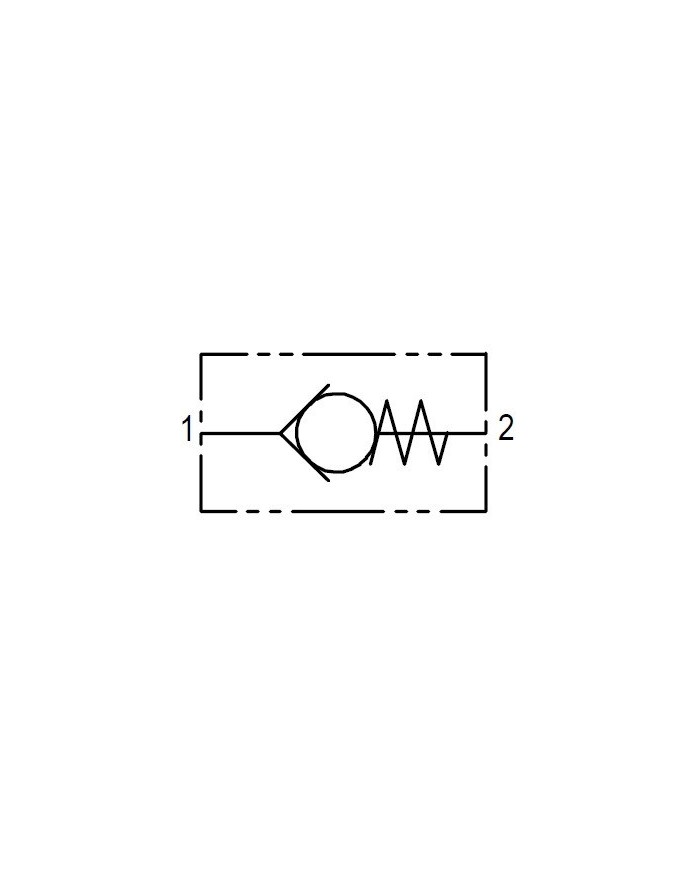

These cartridge check valves allow flow at a low pressure drop, with cracking pressure from 0.2 to 3 bar (3 to 43.5 psi) in the free flow direction and close to prevent flow in the reverse direction.

Three sizes of check cartridge are available with nominal flow rating up to 200 litres/ minute (50 US GPM). They fit into simply machined cavities and are therefore ideal for installation into custom designed Hydraulic Integrated Circuits, manifold blocks and other hydraulic equipment.

Features

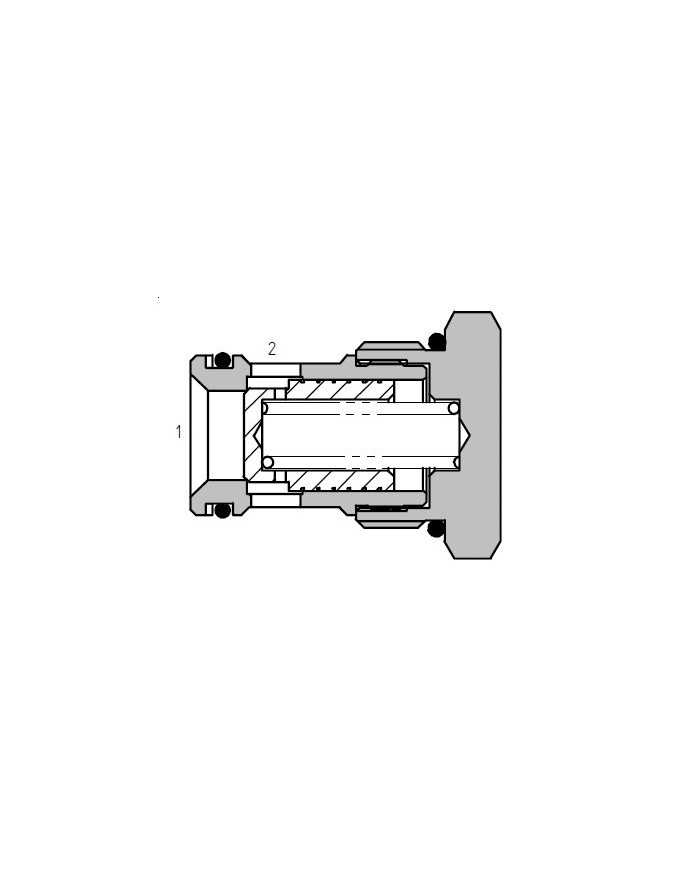

Cartridge design with machined seats and precision poppet gives excellent flow and seating characteristics.

Installation into the 2-port 3/4” UNF, 7/8” UNF or 1 5/16 UN cavities gives easy fitment and serviceability
